Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, CABRIOLET: Removing
WARNING: This page is about a different car, the 2025 Audi S5 Sportback, 2025 Audi RS 5 Sportback, and 2025 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the right rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

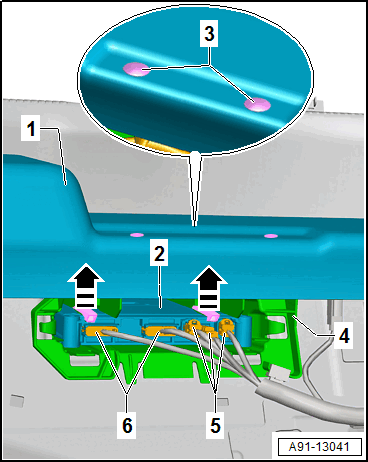

-- Remove the expanding clips -3- using the Pliers :T40172C .
-- Lift the front of the luggage compartment floor -1- near the Control Module for Emergency Call Module and Communication Unit -J949-.
-- Release and disconnect the connectors -6- and antenna wires -5-.
-- Release the retainers -arrows-.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -2- from the mount -4-.
