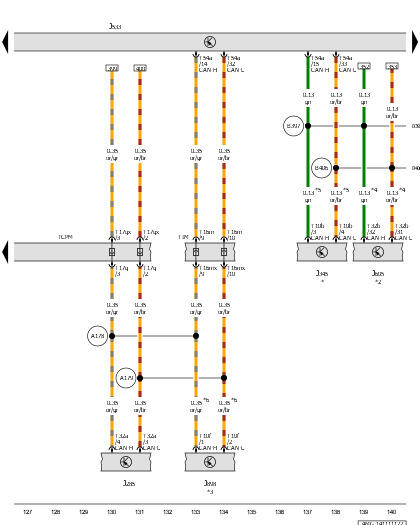

Instrument Cluster Control Module, Towing Recognition Control Module, Data Bus On Board Diagnostic Interface, Rear Lid Control Module, Windshield Projection Head Up Display Control Module
J285
Instrument Cluster Control Module
J345
Towing Recognition Control Module
J533
Data Bus on Board Diagnostic Interface
J605
Rear Lid Control Module
J898
Windshield Projection Head Up Display Control Module
T10b
10-Pin Connector, Black
T10f
10-Pin Connector, Black
T16m
16-Pin Connector, Black
T16mx
16-Pin Connector, Black
T17q
17-Pin Connector, Black
T17qx
17-Pin Connector, Black
T32a
32-Pin Connector, Gray
T32b
32-Pin Connector, Naturally Cloudy
T54a
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
TIM
Coupling Point in Interior, Center
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
*
Refer to the Wiring Diagram for Trailer Towing
*2
Refer to Applicable Power Rear Lid Wiring Diagram
*3
Refer to Applicable Windshield Projection Wiring Diagram
*4
For Vehicles with Power Rear Lid Opening
*5
For Vehicles with Trailer Hitch
*6
For Vehicles with Windshield Projection
