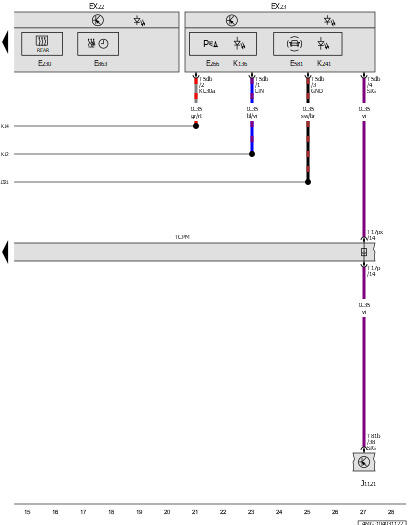

Center Instrument Panel Switch Module, Center Console Switch Module 1, Driver Assistance Systems Control Module
EX22
Center Instrument Panel Switch Module
EX23
Center Console Switch Module 1
E230
Rear Window Defogger Button
E266
Parking Aid Button
E581
Parallel Parking Assistance Button
E863
Auxiliary Coolant Heater Button
J1121
Driver Assistance Systems Control Module
K136
Parking Aid Indicator Lamp
K241
Parallel Parking Assistance Indicator Lamp
T5db
5-Pin Connector, Black
T17p
17-Pin Connector, Black
T17px
17-Pin Connector, Black
T81b
81-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
1321
Ground Connection 2 (in Center Console Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
