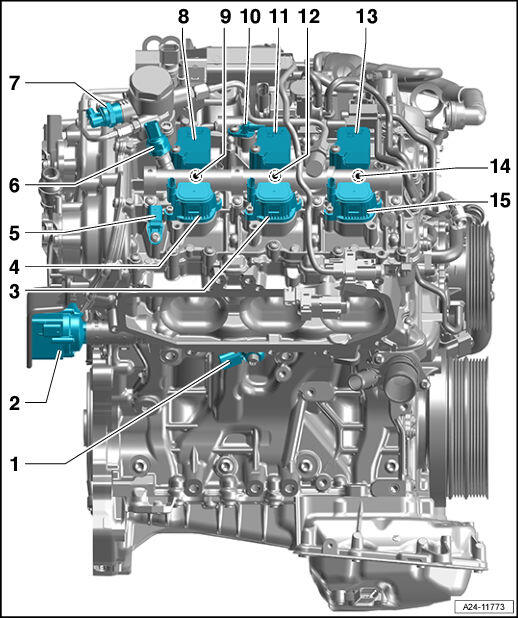

Engine Right
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Knock sensor 1 -G61-
- 2 -
Coolant recirculation pump -V50-
- 3 -
Cylinder 2 intake cam actuator 1 -F452-
- 4 -
Cylinder 3 intake cam actuator 1 -F456-
- 5 -
Camshaft position sensor -G40-
- 6 -
Fuel pressure sensor -G247-
- 7 -
Fuel metering valve -N290-
- 8 -
Ignition coil 3 with power output stage -N291-
- 9 -
Cylinder 3 fuel injector -N32-
- 10 -
Camshaft position sensor 3 -G300-
- 11 -
Ignition coil 2 with power output stage -N127-
- 12 -
Cylinder 2 fuel injector -N31-
- 13 -
Ignition coil 1 with power output stage -N70-
- 14 -
Cylinder 1 fuel injector -N30-
- 15 -
Cylinder 1 intake cam actuator 1 -F448-
