Engine Left

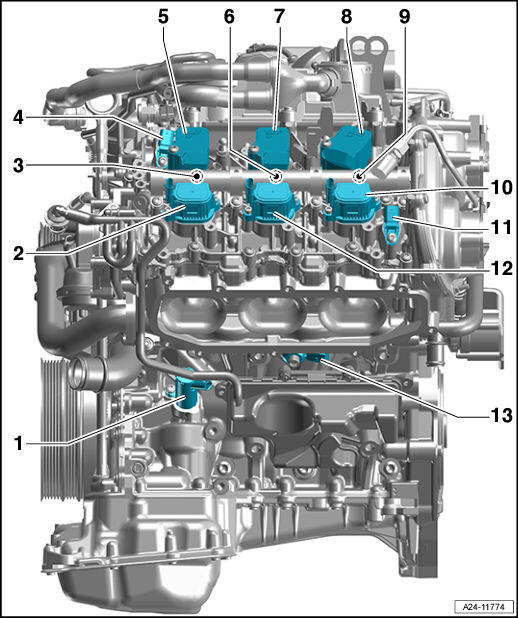

Fig 1: Identifying Left Side Of Engine Components (3.0L TFSI CWGD)
GWWA24-11774Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Oil pressure regulation valve -N428-
  2. 2 -  Cylinder 4 intake cam actuator 1 -F460-
  3. 3 -  Cylinder 4 fuel injector -N33-
  4. 4 -  Camshaft position sensor 4 -G301-
  5. 5 -  Ignition coil 4 with power output stage -N292-
  6. 6 -  Cylinder 5 fuel injector -N83-
  7. 7 -  Ignition coil 5 with power output stage -N323-
  8. 8 -  Ignition coil 6 with power output stage -N324-
  9. 9 -  Cylinder 6 fuel injector -N84-
  10. 10 -  Cylinder 6 intake cam actuator 1 -F468-
  11. 11 -  Camshaft position sensor 2 -G163-
  12. 12 -  Cylinder 5 intake cam actuator 1 -F464-
  13. 13 -  Knock sensor 2 -G66-
