Engine Front

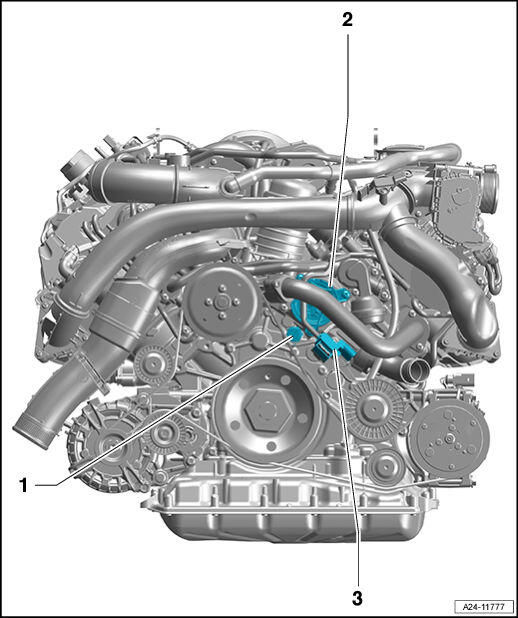

Fig 1: Identifying Front Engine Components (3.0L TFSI CWGD)
GWWA24-11777Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Oil pressure sensor -G10-
  2. 2 -  Map controlled engine cooling thermostat -F265-
  3. 3 -  Cylinder head coolant valve -N489-
