Engine Front

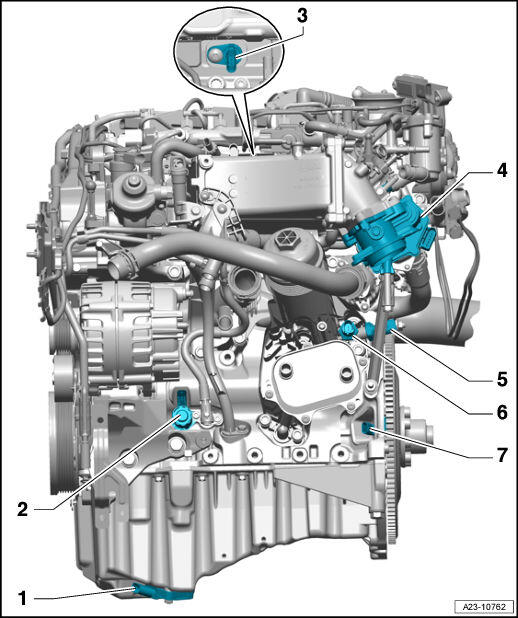

Fig 1: Identifying Front Engine Components (2.0L TDI DFVA)
GWWA23-10762Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Oil level thermal sensor -G266-
  2. 2 -  Oil pressure regulation valve -N428-
  3. 3 -  Camshaft position sensor -G40-
  4. 5 -  Throttle valve control module -GX3-
  5. 5 -  Throttle Valve Control Module -J338-
  6. 5 -  EPC Throttle Drive -G186-
  7. 5 -  EPC Throttle Drive Angle Sensor 1 -G187-
  8. 5 -  EPC Throttle Drive Angle Sensor 2 -G188-
  9. 6 -  Oil pressure switch -F22-
  10. 7 -  Engine speed sensor -G28-
