Steering Column, Removing And Installing: Installing
Install in the reverse order of removal, while noting the following:
-- Bring the steering column into the installation position by engaging the mounting hooks -1- on the central tube -2- -arrow-.
Equipment versions with anti-theft protection component:
-- Bring the bolt -2- with the anti-theft protection component lower section -1- into the installation position.

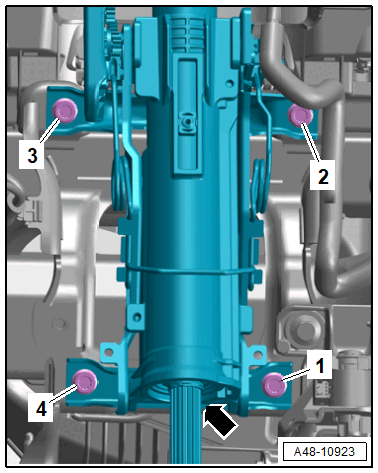

-- Tighten the bolts. Refer to Figure.
-- Drive the anti-theft protection component upper section -3- flush into the lower section using a plastic mallet.
Continuation for All Vehicles:
-- Install the steering intermediate shaft. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
- Readapting the end position of the steering gear. Refer to STEERING GEAR END POSITIONS, ADAPTING .
- Calibrate the Steering Angle Sensor -G85-. Refer to Steering Angle Sensor -G85- BASIC SETTING .
Equipment versions with a power adjustable steering column:
-- After replacing the steering column with Power Adjustable Steering Column Control Module -J866-, select the "Control Module, Replacing" program. Refer to DIAGNOSTIC ENTRIES .
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
