NOX Sensor Control Module -J583- / -GX30-, FOR ENGINE CODES DCPC, DCPE, DEWA, DEWB, DMGA, DMKC: Notes

Component Location

Near engine control module

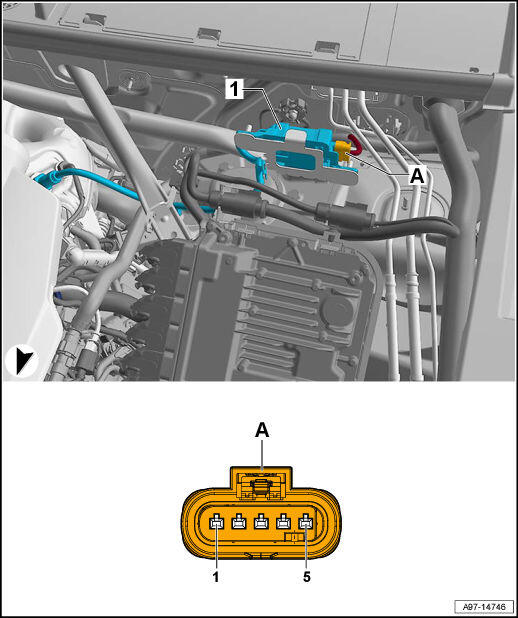

Fig 1: NOX Sensor Control Module -J583- / -GX30- Component Location And Connector End View (DCPC, DCPE, DEWA, DEWB, DMGA, DMKC)

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  NOX Sensor Control Module -J583- / -GX30-
2. A -  5-Pin Connector -T5w-, black
   • for engine codes DCPC, DCPE, DEWA, DEWB
3. A -  5-Pin Connector -T5bl-, black
   • for engine codes DMGA, DMKC
