EVAP System, With Fuel Tank Pressure Sensor -G400-

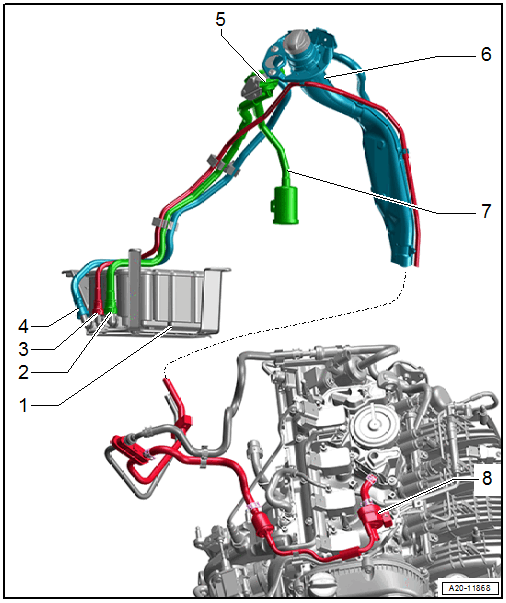

Fig 1: Identifying EVAP System Components, With Fuel Tank Pressure Sensor -G400-
GWWA20-11868Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  EVAP Canister
  2. 2 -  Bleeder Line
    • To the Fuel Tank Pressure Sensor -G400-
  3. 3 -  Bleeder Line
    • To the EVAP Canister Purge Regulator Valve 1 -N80-
  4. 5 -  Fuel Tank Pressure Sensor -G400-
  5. 8 -  EVAP Canister Purge Regulator Valve 1 -N80-
