Check And Adjustment Values

46 - Front Brakes/Rear Brakes

Fig 1: Brake Rotor And Brake Pad, Wear Specifications

Courtesy of AUDI OF AMERICA, LLC

Front axle brake rotors wear specifications -1-

Front axle brake pad wear specification -2-

Wear specification -c-
2 mm.

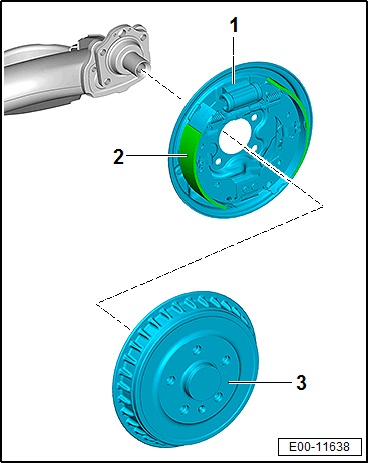

Fig 2: Drum Brakes

Courtesy of AUDI OF AMERICA, LLC

Rear axle brake pad/brake drum wear specification -1-

Brake drum new part diameter -3-	Brake drum permissible wear -3-
279.8 mm	280.8 mm

Rear axle brake pad wear specification -2-

Wear specification -2-
1 mm
