Rearview Camera System, Calibrating: Procedure
-- Check which hole circle the rims have.
-- On every Wheel Center Mounting :VAS 6350/1A , attach three fitting wheel bolt adapters for the wheel bolts using the Supplementary Set Audi R8 :VAS 6350/5 .
-- Insert the measuring paddle -2- on both Wheel Center Mounting -1- and secure it with the locking nut.
-- Place the Wheel Center Mounting on the wheel bolt of both rear wheels.
Condition
- The wheel center mounting rotation center must be in the wheel rotation center.
-- Place the Wheel Center Mounting on the wheels so that anti-theft wheel bolts are not connected to the wheel center mounting.
-- Adjust the measuring paddle using the locking nuts so that they move freely just above the floor.
Condition
- The measuring paddles must move easily.
- The measuring paddles must be in vertical position.
-- Position the Calibration Tool :VAS 6350A -1- at distance -a- behind the vehicle.
Condition
- Dimension -a- = 400 mm to 1000 mm
-- Align the Calibration Tool -1- parallel to the measuring paddles -2-.
Condition
- Distance -b- must be the same on both sides.
-- Note dimension -b- for the step later in the calibration.
-- Using the bubble level (level indicator) -arrow-, bring the Calibration Tool into a level position by turning the plastic bases.
-- Put on the contrast glasses.

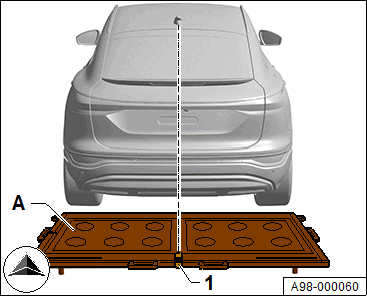

-- Turn on the Calibration Tool - Linear Laser :VAS 6350/3A -1- at the Calibration Tool.
-- Align the Calibration Tool so that the Calibration Tool - Linear Laser -1- strikes the center of the brand emblem on the rear lid.
Measurement of the dimension from the Calibration Tool :VAS 6350A to the rear wheels
-- Switch on the Calibration Tool - Spacing Laser :VAS 6350/2A .
-- Indicator on the display -1-.
-- Display 2 shows how the Calibration Tool - Spacing Laser must be positioned.
- -Arrow 1- : position with front edge
- -Arrow 3- : position with rear edge
-- Press the corresponding button.
-- Position the Spacing Laser -2- on one side of the calibration board flush in the catch bracket.
Condition
- The Calibration Tool - Spacing Laser -2- must be fitted tight to the catch bracket.
-- Press the measuring button briefly.
The laser switches on.
-- The "laser beam" must strike the lower, extended part of the measurement paddle -1-.
If necessary, adjust the height of the measurement paddle -1- by using the clamping screw at the Wheel Center Mounting.
-- Press the button for the distance measurement.
-- Note the value.
-- Repeat the measurement for the rear wheel on the opposite side of the vehicle.
Condition
- The value readout must be identical on both sides.
-- If the values are not equal, then readjust the Calibration Tool and repeat the measurements.
Condition
- The Linear Laser still strikes centered on the emblem.
- The bubble level remains in center.
Measurement of the dimension from the Calibration Tool :VAS 6350A to the workshop floor
-- Measure the dimension from the upper edge of the Calibration Tool to the floor, dimension -a-.
Condition
- Place the Calibration Tool - Spacing Laser in position with the front edge.
-- Display -2- displays how the Calibration Tool - Spacing Laser must be positioned.
- -Arrow 1- : position with front edge
- -Arrow 3- : position with rear edge
-- Press the corresponding button.
-- Press the measuring button briefly.
-- Note the value.
Height measurement from the center of the rearview camera lens to the wheel contact surface
-- Use a commercially available measuring tape to measure the height from the center of the rearview camera lens to the wheel contact surface.
-- Write down the height measurement.
Calibration procedure
-- Perform the calibration of the rearview camera function using the Vehicle diagnostic tester . Refer to Diagnostic Entries .
Condition
- The determined distance and height dimensions must be entered in millimeters in the Vehicle Diagnostic Tester.
-- Disconnect the battery charger. Refer to BATTERY, CHARGING .
