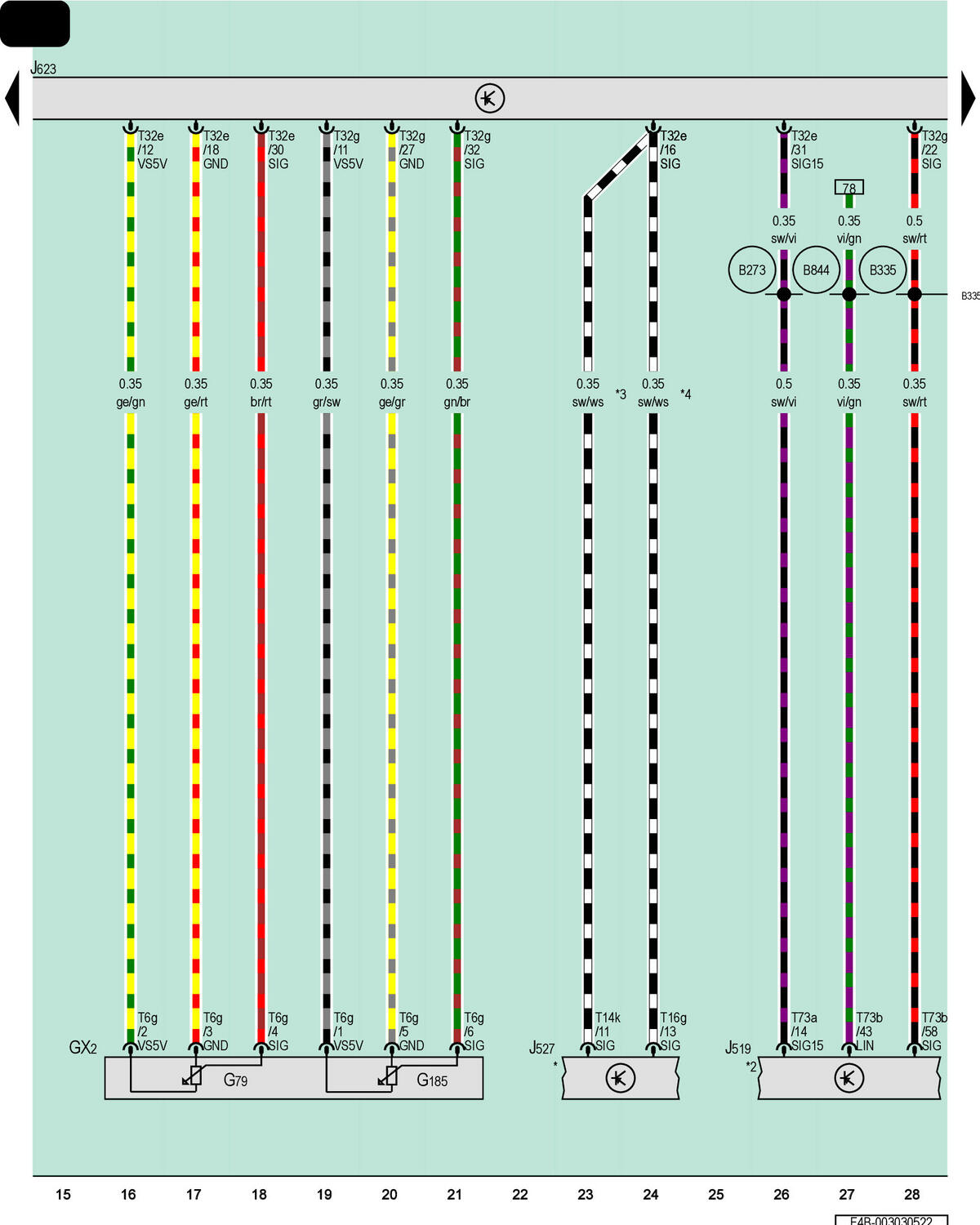

Accelerator Pedal Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module
GX2
Accelerator Pedal Module
G79
Accelerator Pedal Position Sensor
G185
Accelerator Pedal Position Sensor 2
J519
Vehicle Electrical System Control Module
J527
Steering Column Electronics Control Module
J623
Engine/Motor Control Module
T6g
6-Pin Connector, Black
T14k
14-Pin Connector, Black
T16g
16-Pin Connector, Black
T32e
32-Pin Connector, Gray
T32g
32-Pin Connector, Blue
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
B273
Positive Connection (15) (in Main Wiring Harness)
B335
Connection 54 (in Main Wiring Harness) 1
B844
LIN Bus Connection 10 (in Main Wiring Harness)
*
Refer to Applicable Steering Column Electronics Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For Vehicles with Heated Steering Wheel
*4
For Vehicles Without Heated Steering Wheel
