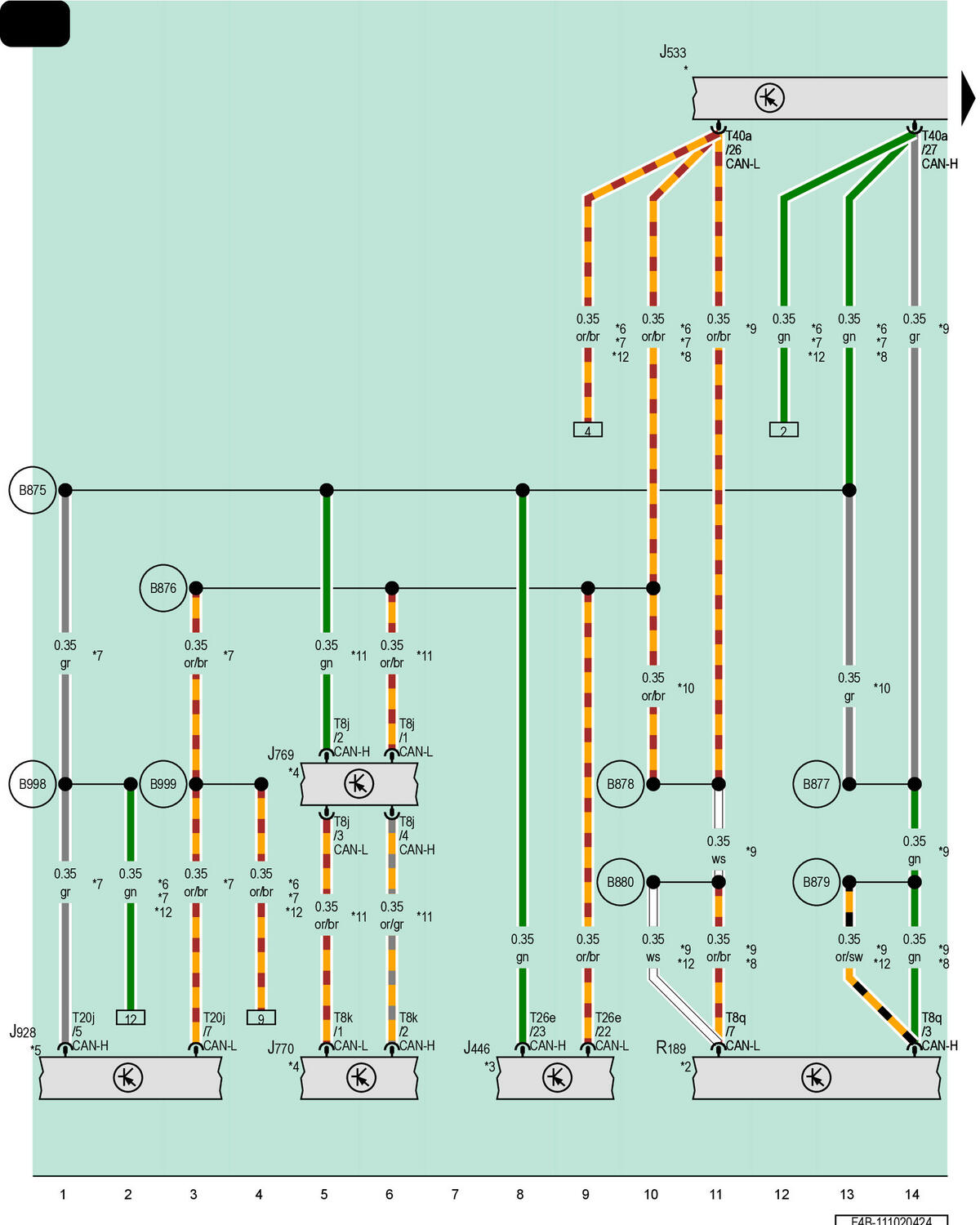

Parking Aid Control Module, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Peripheral Camera Control Module, Rearview Camera
J446
Parking Aid Control Module
J533
Data Bus on Board Diagnostic Interface
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
J928
Peripheral Camera Control Module
R189
Rearview Camera
T8j
8-Pin Connector, Black
T8k
8-Pin Connector, Black
T8q
8-Pin Connector, Black
T20j
20-Pin Connector, Black
T26e
26-Pin Connector, Black
T40a
40-Pin Connector, Black
B875
Driver Assistance Systems CAN Bus High Connection 6 (in Main Wiring Harness)
B876
Driver Assistance Systems CAN Bus Low Connection 6 (in Main Wiring Harness)
B877
Driver Assistance Systems CAN Bus High Connection 7 (in Main Wiring Harness)
B878
Driver Assistance Systems CAN Bus Low Connection 7 (in Main Wiring Harness)
B879
Driver Assistance Systems CAN Bus High Connection 8 (in Main Wiring Harness)
B880
Driver Assistance Systems CAN Bus Low Connection 8 (in Main Wiring Harness)
B998
Driver Assistance Systems CAN Bus High Connection 9 (in Main Wiring Harness)
B999
Driver Assistance Systems CAN Bus Low Connection 9 (in Main Wiring Harness)
*
Refer to Applicable Diagnostic Connector Wiring Diagram
*2
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*3
Refer to Wiring Diagram for Parking Aid
*4
Refer to Applicable Lane Change Assistance Wiring Diagram
*5
Refer to Applicable Peripheral Camera Wiring Diagram
*6
For Vehicles Without Rearview Camera System
*7
For Vehicles with Peripheral Camera
*8
Through June 2024
*9
For Vehicles with Rearview Camera System
*10
Depending on Equipment
*11
For Vehicles with Lane Change Assistance
*12
From June 2024
