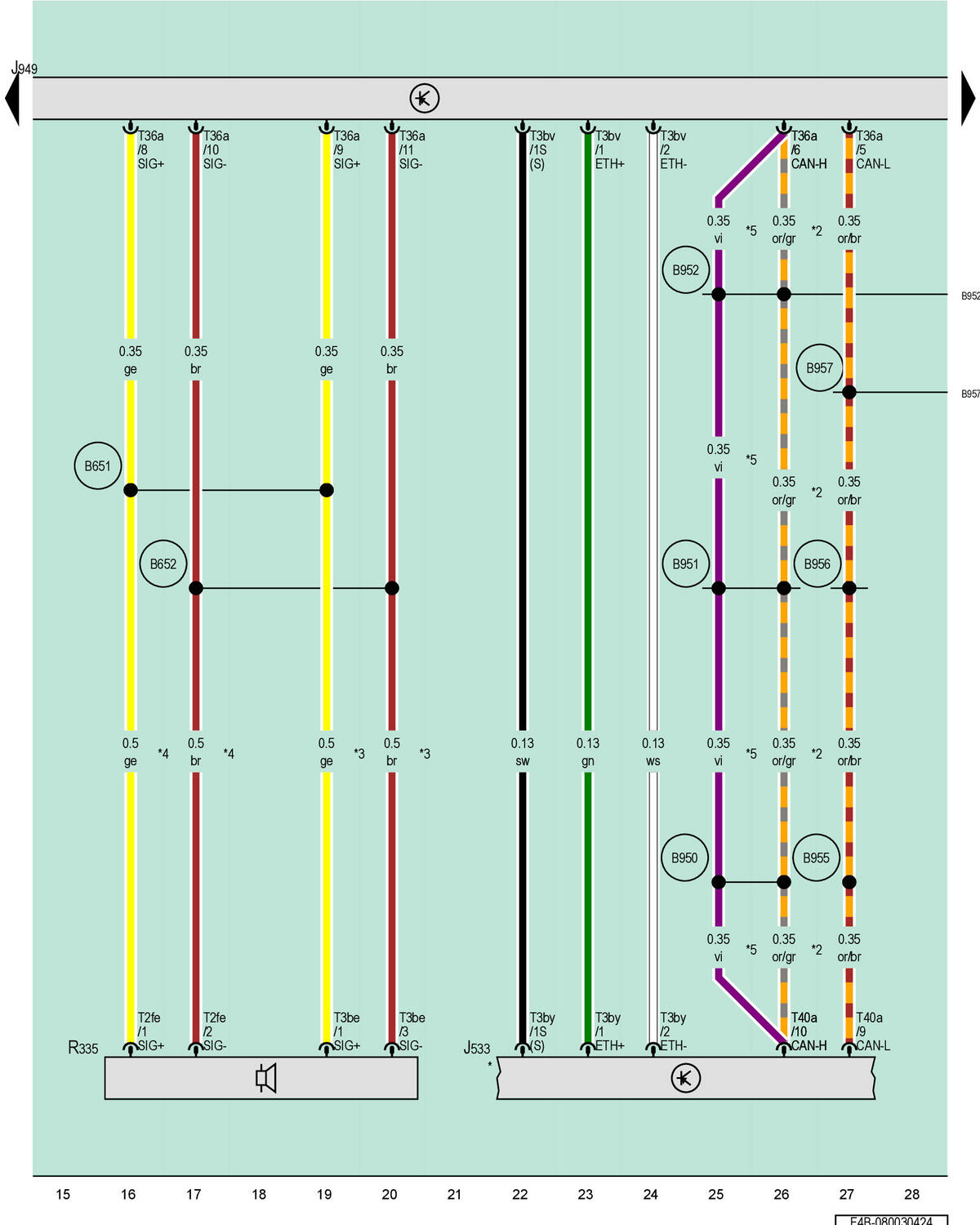

Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J949

Control Module for Emergency Call Module and Communication Unit

R335

Emergency Call Module Speaker

T2fe

2-Pin Connector, Black

T3be

3-Pin Connector, Black

T3bv

3-Pin Connector, Black, Different Connector Color Possible

T3by

3-Pin Connector, Black

T36a

36-Pin Connector, Black

T40a

40-Pin Connector, Black

B651

Speaker Connection 1 (in Main Wiring Harness)

B652

Speaker Connection 2 (in Main Wiring Harness)

B950

Connection 1 (CAN Bus Connectivity High) in Main Wiring Harness

B951

Connection 2 (CAN Bus Connectivity High) in Main Wiring Harness

B952

Connection 3 (CAN Bus Connectivity High) in Main Wiring Harness

B955

Connection 1 (CAN Bus Connectivity Low) in Main Wiring Harness

B956

Connection 2 (CAN Bus Connectivity Low) in Main Wiring Harness

B957

Connection 3 (CAN Bus Connectivity Low) in Main Wiring Harness

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

Through June 2024

*3

For Vehicles Without an Amplifier

*4

For Vehicles with an Amplifier

*5

From June 2024
