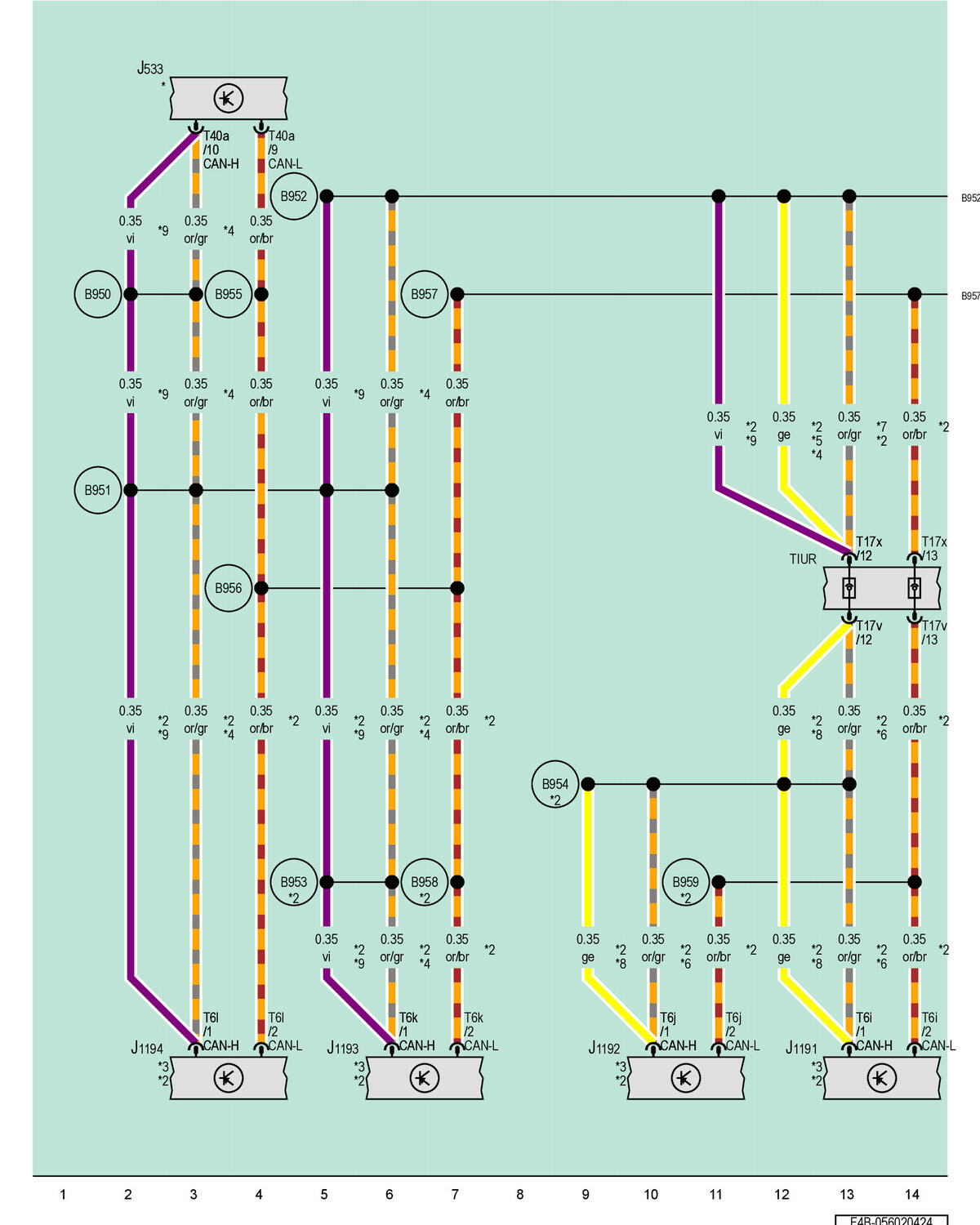

Data Bus On Board Diagnostic Interface, Burglary Protection Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3, Burglary Protection Control Module 4
J533
Data Bus on Board Diagnostic Interface
J1191
Burglary Protection Control Module
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
J1194
Burglary Protection Control Module 4
T6i
6-Pin Connector, Black
T6j
6-Pin Connector, Black
T6k
6-Pin Connector, Black
T6l
6-Pin Connector, Black
T17v
17-Pin Connector, Brown
T17x
17-Pin Connector, Brown
T40a
40-Pin Connector, Black
TIUR
Coupling Point in Interior, Bottom Right
B950
Connection 1 (CAN Bus Connectivity High) in Main Wiring Harness
B951
Connection 2 (CAN Bus Connectivity High) in Main Wiring Harness
B952
Connection 3 (CAN Bus Connectivity High) in Main Wiring Harness
B953
Connection 4 (CAN Bus Connectivity High) in Main Wiring Harness
B954
Connection 5 (CAN Bus Connectivity High) in Main Wiring Harness
B955
Connection 1 (CAN Bus Connectivity Low) in Main Wiring Harness
B956
Connection 2 (CAN Bus Connectivity Low) in Main Wiring Harness
B957
Connection 3 (CAN Bus Connectivity Low) in Main Wiring Harness
B958
Connection 4 (CAN Bus Connectivity Low) in Main Wiring Harness
B959
Connection 5 (CAN Bus Connectivity Low) in Main Wiring Harness
*
Refer to Applicable Diagnostic Connector Wiring Diagram
*2
For Vehicles with Keyless Access Authorization
*3
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*4
Through June 2024
*5
From July 2022
*6
Through September 2023
*7
Through July 2022
*8
From September 2023
*9
From June 2024
