Digital Sound System Control Module J525, Removing And Installing: Removing

If the control module is replaced, the test plan to replace the control module must be performed.

-- Perform the "control module, replacing" function using the Vehicle diagnostic tester . Refer to Diagnostic Entries .

Continuation

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

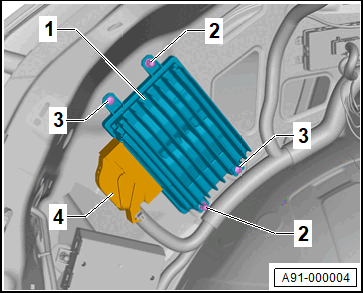

-- Disconnect the connector -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3-.

-- Remove the nuts -2-.

-- Remove the Digital Sound System Control Module -J525- -1-.
