Control Module For Emergency Call Module And Communication Unit J949, Removing And Installing: Removing

If the control module is replaced, the test plan to replace the control module must be performed.

-- Perform the "control module, replacing" function using the Vehicle diagnostic tester . Refer to Diagnostic Entries .

Continuation

-- Remove the cupholder. Refer to CUPHOLDER, REMOVING AND INSTALLING .

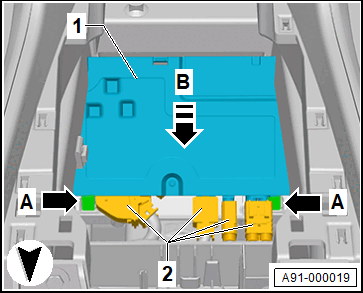

-- Disconnect the connectors -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Use the Hook Tool :T40207  to release the hooks -A arrows-.

-- Move the Control Module for Emergency Call Module and Communication Unit -J949- -1- forward first -arrow B- and then remove it.
