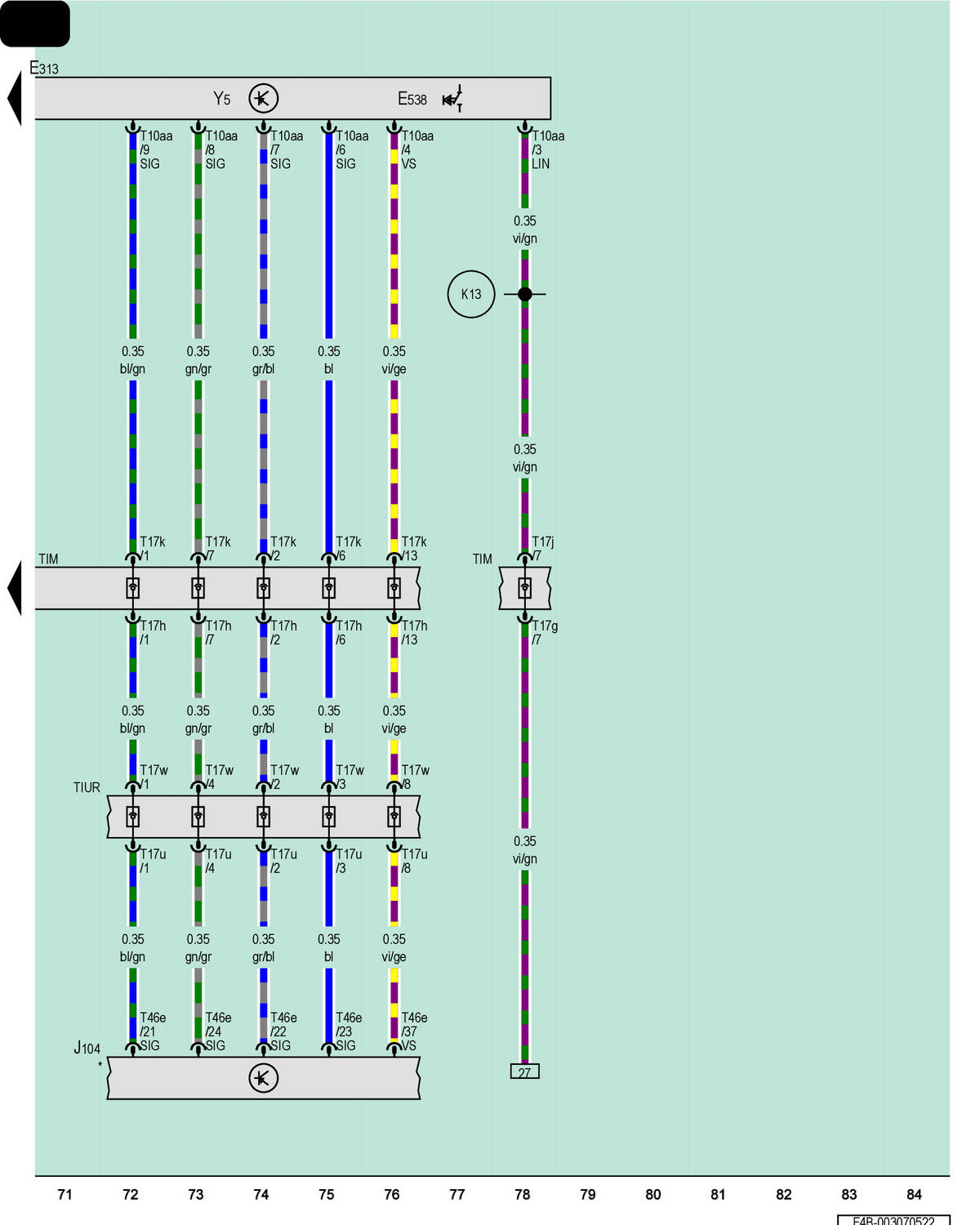

Selector Lever, Abs Control Module

Courtesy of AUDI OF AMERICA, LLC

E313

Selector Lever

E538

Electromechanical Parking Brake Button

J104

ABS Control Module

T10aa

10-Pin Connector, Black

T17g

17-Pin Connector, Black

T17h

17-Pin Connector, Red

T17j

17-Pin Connector, Black

T17k

17-Pin Connector, Red

T17u

17-Pin Connector, Black

T17w

17-Pin Connector, Black

T46e

46-Pin Connector, Black

TIM

Coupling Point in Interior, Center

TIUR

Coupling Point in Interior, Bottom Right

Y5

Selector Lever Transmission Range Display

K13

LIN Bus Connection 2 (in Center Console Wiring Harness)

*

Refer to Applicable Airbag Wiring Diagram
