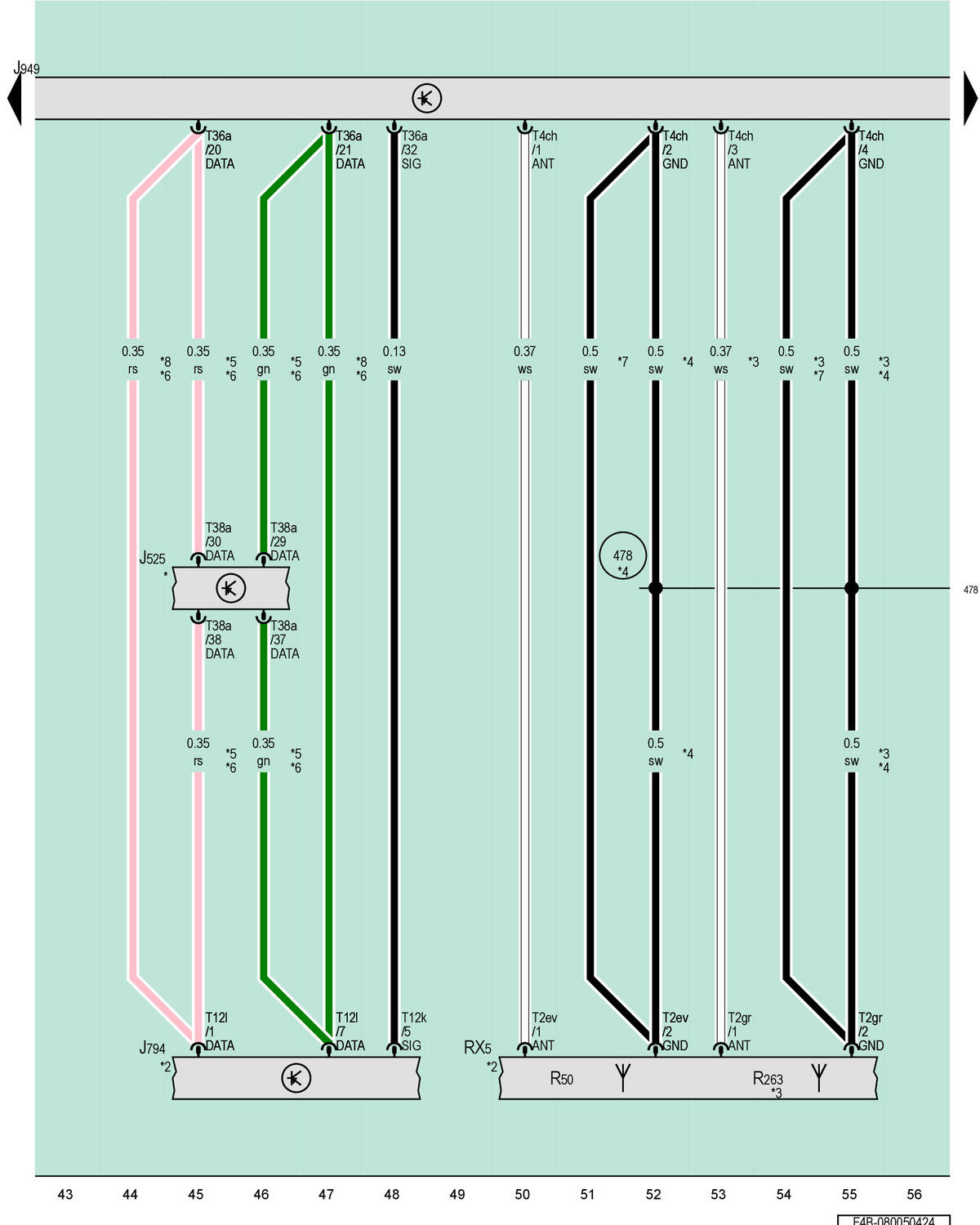

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Roof Antenna

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

RX5

Roof Antenna

R50

GPS Antenna

R263

Emergency Call Module Antenna

T2ev

2-Pin Connector, Blue

T2gr

2-Pin Connector, Purple

T4ch

4-Pin Connector, Pink

T12k

12-Pin Connector, Blue

T12l

12-Pin Connector, Green

T36a

36-Pin Connector, Black

T38a

38-Pin Connector, Black

478

Ground Connection 3 (in Rear Lid Wiring Harness)

*

Refer to Applicable Sound System Wiring Diagram

*2

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*3

For Vehicles with Mobile Online Services

*4

From June 2023

*5

For Vehicles with an Amplifier

*6

Audio Bus Data Bus Wire

*7

Through June 2023

*8

For Vehicles Without an Amplifier
