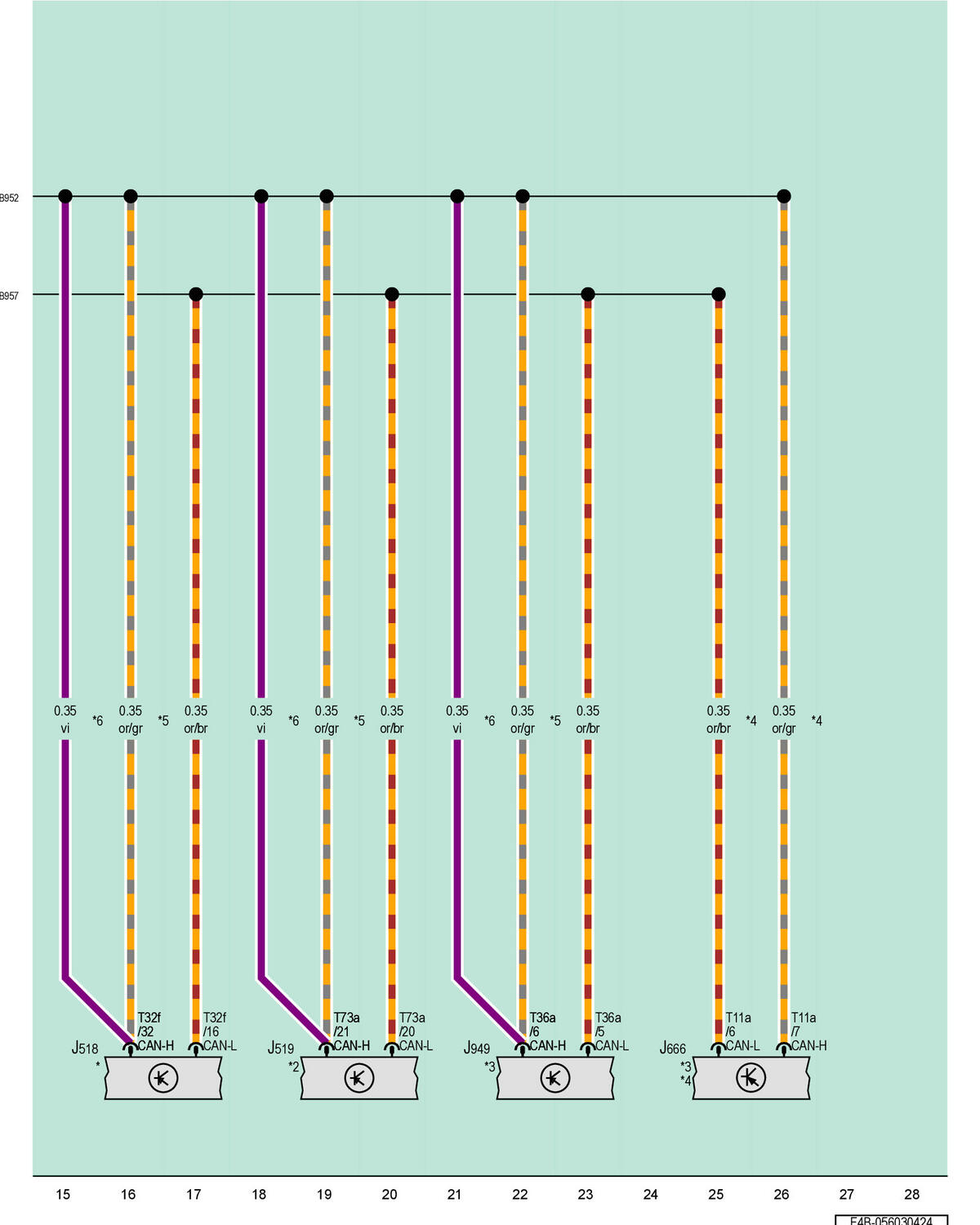

Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Internet Access Control Module, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J518

Access/Start Authorization Control Module

J519

Vehicle Electrical System Control Module

J666

Internet Access Control Module

J949

Control Module for Emergency Call Module and Communication Unit

T11a

11-Pin Connector, Black

T32f

32-Pin Connector, Gray

T36a

36-Pin Connector, Black

T73a

73-Pin Connector, Black

B952

Connection 3 (CAN Bus Connectivity High) in Main Wiring Harness

B957

Connection 3 (CAN Bus Connectivity Low) in Main Wiring Harness

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Refer to Applicable Communication Wiring Diagram

*4

For Vehicles with China Equipment

*5

Through June 2024

*6

From June 2024
