Overview - Shift Mechanism

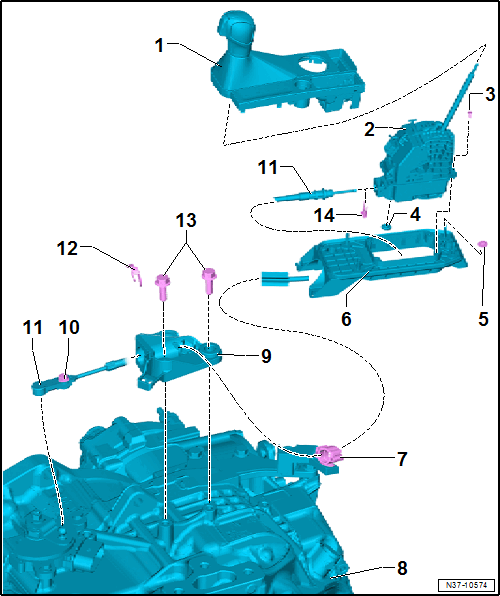

Fig 1: Exploded View Of Selector Mechanism

Courtesy of AUDI OF AMERICA, LLC

Selector Lever Handle
- With Shift Cover
- Overview. Refer To OVERVIEW - SELECTOR LEVER HANDLE .
Shift Mechanism
- With Integrated Selector Lever Sensor System Control Module -J587- With Selector Lever -E313-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- And Shift Lock Solenoid -N110-.
- Removing And Installing. Refer To SHIFT MECHANISM, REMOVING AND INSTALLING .
- Checking And Adjusting. Refer To SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
Bolt
- 4 Nm
- For The Selector Mechanism To The Selector Housing
- Quantity: 4
Plugs
Hex Nut With Collar
- M6 - 8 Nm
- M8 - 20 Nm
- Quantity: 4
Shifter Housing
Bracket
- 20 Nm
- For The Selector Lever Cable
- Air Cleaner Housing Removed For Access
Transmission
Cable Bracket
- For The Selector Lever Cable
- With Installed Grommet And Spacer For The Cable Bracket Mounting On The Transmission
Bolt
- 13 Nm
- Selector Lever Cable Adjusting Bolt
Selector Lever Cable
- Removing And Installing. Refer To SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
Lock Washer
- Replace After Removing
- Secures The Selector Lever Cable On The Cable Bracket
Bolts
- 20 Nm
Lock Washer
- Replace After Removing
