Securing On Engine And Transmission Holder: Procedure

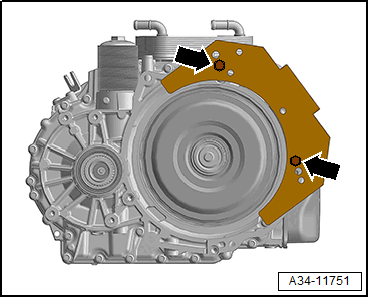

GWWA34-11751Courtesy of AUDI OF AMERICA, LLC

-- Mount The Transmission To The :VW353  And Place It, With The :VW309  In The :VAS6095  .

CAUTION:

There Is A Risk Contamination From Dripping ATF When Turning The Transmission.

- Seal The Bleed Hole On The Transmission Housing If The Filled Transmission Will Be Turned With The Bleed Hole Facing Downward.
