Overview - ATF Circuit

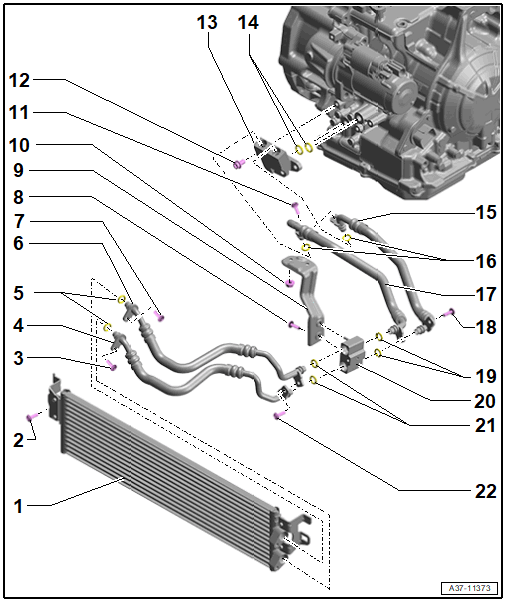

Fig 1: Overview - ATF Circuit

Courtesy of AUDI OF AMERICA, LLC

ATF Cooler
- Removing And Installing. Refer To ATF COOLER, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Bolt
- 8 Nm
ATF Line
- From The Adapter To The ATF Cooler
- Removing And Installing. Refer To ATF LINES, REMOVING AND INSTALLING .
O-Rings
- Replace After Removing
ATF Line
- From The Adapter To The ATF Cooler
- Removing And Installing. Refer To ATF LINES, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Bolt
- 20 Nm
Bracket
Nut
- 8 Nm
Bolt
- 8 Nm
Bolt
- 20 Nm
Thermostat
- Removing And Installing. Refer To THERMOSTAT, REMOVING AND INSTALLING .
O-Rings
- Replace After Removing
ATF Line
- From The Thermostat To The Adapter
- Removing And Installing. Refer To ATF LINES, REMOVING AND INSTALLING .
O-Rings
- Replace After Removing
ATF Line
- From The Thermostat To The Adapter
- Removing And Installing. Refer To ATF LINES, REMOVING AND INSTALLING .
Bolt
- 8 Nm
O-Rings
- Replace After Removing
Adapter
O-Rings
- Replace After Removing
Bolt
- 8 Nm
