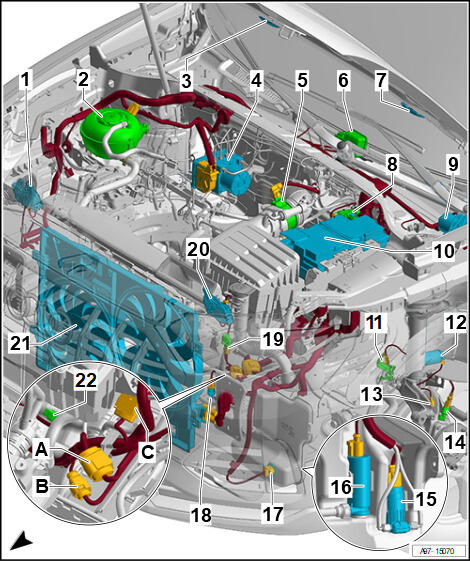

Front, View From Left, Part 1
Courtesy of AUDI OF AMERICA, LLC
- A -
14-Pin Connector -T14G-, Gray / 14-Pin Connector -T14Gx-, Gray
- B -
14-Pin Connector -T14Af-, Black / 14-Pin Connector -T14Afx-, Black
- For Vehicles With 2.5L Gasoline Engine
- B -
10-Pin Connector -T10K-, Black / 10-Pin Connector -T10Kx-, Black
- For Vehicles With 2.0L Gasoline Engine
- B -
8-Pin Connector -T8G-, Black / 8-Pin Connector -T8Gx-, Black
- For Vehicles With Diesel Engine
- For Vehicles With 2.5L Gasoline Engine
- B -
4-Pin Connector -T4Ay-, Black / 4-Pin Connector -T4Ayx-, Black
- For Vehicles With 1.5L Gasoline Engine
- For Vehicles With 1.4L Engine
- B -
3-Pin Connector -T3U-, Black / 3-Pin Connector -T3Z-, Black
- For Vehicles With 2.5L Gasoline Engine
- Where Applicable
- C -
4-Pin Connector -T4Ep-, Black / 4-Pin Connector -T4Epx-, Black
- For Vehicles With 1.5L Gasoline Engine
- For Emissions Standard Euro 6 DG Or Euro 6 AP Or J18 Japan
- C -
10-Pin Connector -T10Aj-, Black / 10-Pin Connector -T10Ajx-, Black
- C -
14-Pin Connector -T14K-, Black / 14-Pin Connector -T14Kx-, Black
- For Vehicles With 1.5L Gasoline Engine
- Where Applicable
- 1 -
Engine Hood Contact Switch -F266-
- 1 -
EVAP Canister Air Flushing Pump -V700-
- Deviating Installation Position
- For Vehicles With 1.5L Gasoline Engine
- For Vehicles With China Equipment
- 2 -
Engine Coolant Level (ECl) Sensor -G32-
- 3 -
Right Washer Nozzle Heater -Z21-
- 4 -
ABS Control Module -J104-
- 5 -
Mass Airflow Sensor -G70-
- 6 -
Alarm Horn -H12-
- 7 -
Left Washer Nozzle Heater -Z20-
- 8 -
Battery Monitoring Control Module -J367-
- Vehicles With Battery Monitoring Control Module -- In The Engine Compartment
- Vehicles With Battery Monitoring Control Module -- In Luggage Compartment→ Component Locations: Rear Part Of Vehicle
- 9 -
Wiper Motor Control Module -J400-
- 10 -
Battery -A-
- For Vehicles With A Battery In The Engine/Motor Compartment
- For Vehicles With Battery In Luggage Compartment → Component Locations: Rear Part Of Vehicle
- 11 -
Left Front Level Control System Sensor -G78-
- 12 -
Left Front Dampening Adjustment Valve -N336-
- 13 -
Left Front Brake Pad Wear Sensor -G34-
- 14 -
Left Front Wheel Speed Sensor -G47-
- 15 -
Windshield And Rear Window Washer Pump -V59-
- 16 -
Headlamp Washer Pump -V11-
- 17 -
Windshield Washer Fluid Level Sensor -G33-
- 18 -
Engine Coolant Temperature Sensor On Radiator Outlet -G83-
- 19 -
Driver Front Airbag Crash Sensor -G283-
- For Vehicles With Left-Hand Drive
- 20 -
Hood Contact Switch 2 -F329-
- 21 -
Radiator Fan -Vx57-
- 22 -
Mass Airflow Sensor For Regenerated Air -G1089-
