Driver Assistance Systems Front Camera -R242- LENS, REMOVING AND INSTALLING.: Removing

-- Put the scraper -1- from the Scraper Set:VAS6845  in between the roof module and the cover.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cover -2- in direction of -arrows-, for this turn the scraper around its own axle.

-- Disengage the retaining strap -3-.

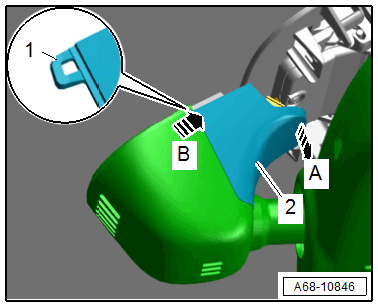

-- Pull the cover -2- downward in direction of -arrow A- and at the same time release the retainers -1- by firmly pressing on the cover in direction of -arrow B-.

Fig 1: Automatic High Beam Assist Control Module -J844-

Courtesy of AUDI OF AMERICA, LLC

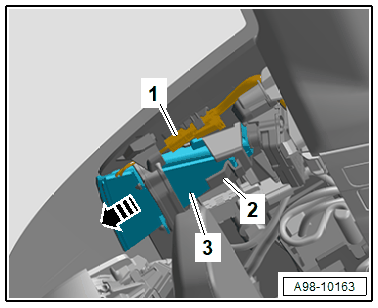

-- Free up the connector -1- and disconnect.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -2-, remove the lens -3- in direction of -arrow-.
