Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING: Installing

Install in the reverse order of removal while noting the following:

-- Tighten the bolt and nuts in the sequence -1, 2 and 3-.

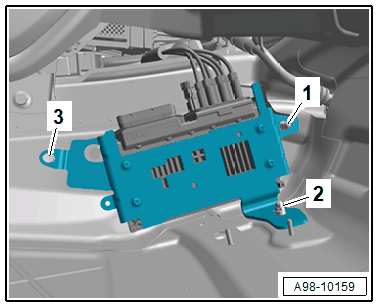

Fig 1: Driver Assistance Systems Control Module Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

If the Control Module was Replaced, Perform the Calibration of the Driver Assistance Systems Front Camera -R242-.

-- Refer to Driver Assistance Systems Front Camera -R242-  .

Continuation
