Overview - Windshield, Security

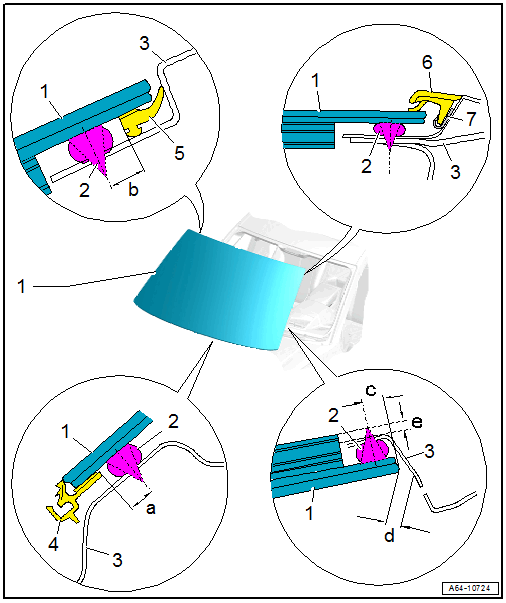

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI

1. Windshield
   • Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING, SECURITY .
   • Distance to A-pillars: dimension -d- = greater than 3 mm; center if necessary
     • Dimension and position of the windshield to the clamping strip varies along the A-pillar
2. Adhesive Bead
   • Observe the minimum curing time. Refer to Installing .
   • Different distances to window edge:
     • Dimension -a- = 7.7 mm
     • Dimension -b- = 6.8 mm
     • Dimension -c- = 8.9 mm
     • Dimension -e- = 1 mm
   • Adhesive bead thickness. Refer to Adhesive application: .
3. Windshield Frame
4. Plenum Chamber Cover Frame
   • No replacement part
   • With a new window glass remove the protective piping. Refer to Figure.
5. Cover Profile
   • Replace if reusing an undamaged windshield
   • Cover Profile, Mounting on Undamaged Windshield. Refer to Installing
6. Drip Rail
   • Removing and Installing. Refer to Installing
7. Clamping Strip
   • For the drip rail
