00 Replacement Control Module Is Unable To Be Coded (GROUP 00, NO. 23-77)
Publication date: 2023-10-16Reference number: GROUP 00, NO. 23-77
Supersedes refnos: 2071338/1, 2071338/2, GROUP 00, NO. 23-72
00 REPLACEMENT CONTROL MODULE IS UNABLE TO BE CODED
TECHNICAL SERVICE BULLETIN
| AUDI: | 2023-2024 Q7, SQ7, Q8, SQ8, and RS Q8; 2024 A4, A4 allroad, S4, A5, A5 Cabriolet, A5 Sportback, S5, S5 Cabriolet, S5 Sportback, RS, RS 5 Sportback, A6, A6 allroad, S6, RS 6 Avant, A7, S7, RS 7, A8, S8, e-tron GT, RS e-tron GT, Q5, Q5 e quattro, Q5 Sportback, SQ5, SQ5 Sportback, Q8 e-tron quattro, Q8 Sportback e-tron, SQ8 e-tron quattro, and SQ8 Sportback e-tron |
| GROUP: | 00 - General |
SERVICE INFORMATION
00 23 77 2071338/2 October 16, 2023. Supersedes Technical Service Bulletin Group 00 number 23-72 dated September 8, 2023, for reasons listed below.
| Model(s) | Year | VIN Range | Vehicle-Specific Equipment |
|---|---|---|---|
| Q7, SQ7, Q8, SQ8, and RS Q8 | 2023 - 2024 | All | Not Applicable |
| A4, A4 allroad, S4, A5, A5 Cabriolet, A5 Sportback, S5, S5 Cabriolet, S5 Sportback, RS, RS 5 Sportback, A6, A6 allroad, S6, RS 6 Avant, A7, S7, RS 7, A8, S8, e-tron GT, RS e-tron GT, Q5, Q5 e quattro, Q5 Sportback, SQ5, SQ5 Sportback, Q8 e-tron quattro, Q8 Sportback e-tron, SQ8 e-tron quattro, and SQ8 Sportback e-tron | 2024 |
CONDITION
| Revision | Date | Purpose |
|---|---|---|
| 2 | - | Revised header (Added Model Year 23 for Q8) |
| 1 | 09/08/2023 | Initial publication |
Workshop findings:

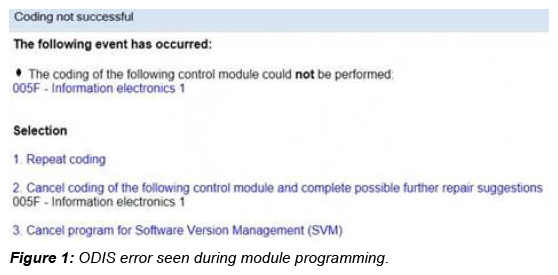

After a control unit has been replaced, it is not possible to complete the replacement test plan (Figure 1).
TECHNICAL BACKGROUND
On certain MY 23/24 vehicles, a temporary coding solution is in place during updates to backend systems.
PRODUCTION SOLUTION
Once backend updates are completed, normal replacement process will resume and this TSB will be retired.
SERVICE
The following control units are affected by this TSB:
| MLBevo, gen 1 A4, A5, Q5 |
MLBevo gen. 2 A6, A7, A8, Q7, Q8, Q8 e-tron, e-tron GT |
||||
|---|---|---|---|---|---|
| Diagnostic address | Module | Designation | Diagnostic address | Module | Designation |
| 0001 | Engine | Engine control unit | 0001 | Engine | Engine control unit or drive system control unit |
| 0002 | Gearbox | Gearbox control unit-AL | 0003 | ESC | Brake control system |
| 0002 | Gearbox | Gearbox control unit-DL | 0015 | SC2 | Safety computer 2 |
| 0003 | ESC | Brake control system | 0019 | GW3 Mid 3.1 UNECE | GW Mid-G2-S-9-8A-4B GW Mid-G2-S-4-8A-4B GW Mid-G2-S-4-8A GW Mid-G1-S-4-8A GW Mid-G1-S-4-4A |
| 0013 | ACC LRR |
Adaptive cruise control (long-range radar master) | 0023 | EBKV (EBS) | Electromechanical brake servo (iBooster) |
| 0015 | SC | Safety computer 1b | 002B | ELV (ESCL) | Steering column lock |
| 0019 | GW3 Mid 3.1 UNECE | GW Mid-G2-S-4-8A-4B GW Mid-G2-S-4-8A-4B GW Mid-G1-S-4-8A GW Mid-G1-S-4-4A GW Mid-G2-S-4-8A |
0044 | EPS (RC) | Electronic power steering |
| 0023 | EBKV (EBS) | Electromechanical brake servo | 0046 | BCM2 | Body Control Module 2 (convenience system central module) |
| 002B | ELV (ESCL) | Steering column lock | 0051, 00CE | LE | Power electronics PWR 560A |
| 0044 | EPS (APA) | Electronic power steering | 005F | ZR | MIB3 (ORU-enabled) |
| 0046 | BCM2 | Body Control Module 2 (convenience system central module) | 0069 | AAG | Trailer hitch module |
| 0051 | LE | Power electronics LE EPF2.8 (P-HEV) AU536x, AU65x | 0075 | ConBox | Connectivity box |
| 0051 | LE | Power electronics LE FPE (P-HEV), AU426x, AU58x | 008C | BMC | Battery Management Controller |
| 005F | ZR | MIB3 (ORU-enabled) | 00C0 | aSound | Active exterior sound |
| 0075 | ConBox | Connectivity box | 00C5 | TME | Thermal Management |
| 008B | ACC2 LRR | Adaptive cruise control (long-range radar slave) | 00C6 | OBC | Charging electronics (on-board charger) 7.2kW |
| 008C | BMC | Battery Management Controller | 00C6, 8113 | OBC | Charging electronics (on-board charger) 11kW C-BEV |
| 00A5 | BVS | Image processing control unit, MLBevo gen. 1 | 00CB | HAL | Rear wheel steering |
| 00AE | TBox | Telemetry diagnostic control unit | 0616 | INRUE_NGS/IRUE | Interior monitoring/tilt sensor |
| 00C5 | TME | Thermal management for electric vehicles | 06EB | NFC_TGS | NFC reader for driver door handle |
| 00C6 | OBC | Charging electronics (on-board charger) 7.2kW | 070B | NFC_MiKo | NFC reader for phone box/centre console |
| 8107 | DDA | Digital roof aerial Aerial module | |||
Tip: Please read through all content below before proceeding. In an effort to reduce the complexity of the remote coding session, all points below should be strictly adhered to. Lack of preparation will result in delays and possibly re-scheduling of appointment.
Pre-requisites:
- MY 24 vehicle model and control module matches table above.
- Unrestricted internet access to ODIS tester.
- ODIS tester MUST be at the latest software level to support the remote coding session.
- Microsoft Teams installed on scan tool (Teams icon on desktop).
- Install Vector Remote Access Point onto scan tool.
- Technician can login to email on scan tool.
- Technician has a headset with microphone connected to scan tool.
- Technician availability of approximately 2 hours.
Using the steps below, prepare for the remote coding session:
Install Vector Remote Access Point:
- Copy and paste the link below into your web browser:
https://portal.vector.com/shared/55185888-4f70-4b99-beef-0cb2aff8e127
- VectorRemoteAccessPoint2.1.3.msi will be downloaded to the "Downloads" folder.
- Double click the file to install the tool.
Tip: If the file downloads with a ".txt" extension, you must delete the ".txt" extension for the tool to install.
- File must read exactly as: VectorRemoteA ccessPoint2.1.3. msi
To access the tool during the coding session:

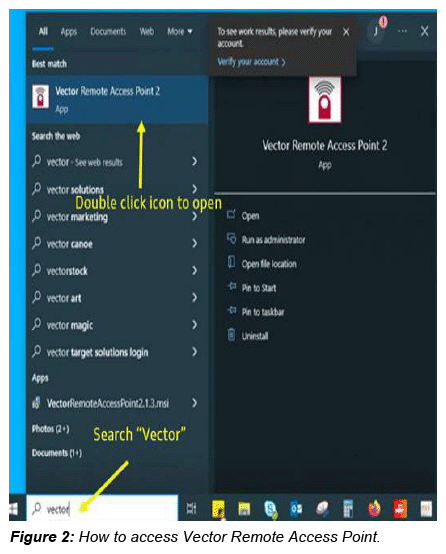

- Search "vector" from the windows desktop search bar.
- Click the Vector icon and accept the prompt when the tool opens.
Install Microsoft Teams:
- Copy and paste the link below into your web browser
https://www.microsoft.com/en-us/microsoft-teams/group-chat-software
- Click "Download Teams" in upper right hand side of website, follow on screen prompts to complete install.
- Teams Icon should appear on the windows desktop
Schedule a coding session:
- Email the manufacturer at Audi-control-unit-initialization@audi.de

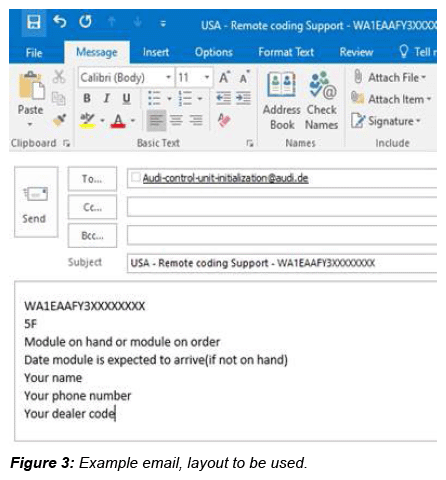

- Compose email as follows (Figure 3):
Subject:
- USA - Remote coding support - VIN
Body:
- VIN
- Module address affected.
- Is module on hand?
- When is module going to arrive?
- Contact name and phone number for the individual working on car.
- Dealer code.
Tip: Order module ahead of session if possible
- An Audi representative will contact you back at the email used to coordinate a coding session.
- Technician will receive an email invite which will include a link to the Microsoft Teams meeting.
Prepare for the coding session:
- Ensure a battery maintainer is connected.
- Ensure ODIS tester to be used is at latest SW level.
- New module is installed in the vehicle.
- Diagnostic head is hardwired between the vehicle and ODIS tester.
- ODIS tester hardwired to internet access point (if possible).
- Connect a wired headset with microphone for the coding session.
- DO NOT have ODIS started at this point.
Coding Session:
- Using the ODIS tester, connect to the Microsoft Teams session using the link from your email.
- Start the Vector access point (see figure 2 above).

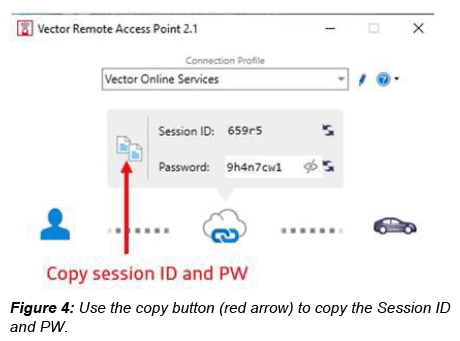

- Copy/paste the Vector session ID and PW into teams chat window (red arrow figure 4).
- Audi representative will carry out initial coding of the module using the Vector remote access point.
- Once instructed, technician will start a new ODIS "Diagnosis" Session.
- Work with the Audi representative throughout the coding process.
- Once the remote coding session is complete, carry out any other subsequent work needed.
WARRANTY
| Claim Type: |
|
||
| Service Number: | XXXX Use the service number and damage code which matches the module replaced. | ||
| Damage Code: | 00XX | ||
| Labor Operations: | Module replacement | Use SRT for module replaced | See SRT with associated operations |
| Coding session | 9005 2599 | Max 200 TU | |
| Diagnostic Time: | GFF | No allowance (included above) | 0 TU |
| Road test prior to the service procedure | No allowance | 0 TU | |
| Road test after the service procedure | 0121 0004 | 10 | |
| Claim Comment: | As per TSB 2071338/2 | ||
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.
REQUIRED PARTS AND TOOLS
| Tool Number | Tool Description |
|---|---|
| Microsoft Teams | https://www.microsoft.com/en-us/microsoft-teams/group-chat-software |
| Vector Remote Access Point | https://portal.vector.com/shared/55185888-4f70-4b99-beef-0cb2aff8e127 |
| Wired headset with microphone | Locally sourced |
| VAS 6160/VAS 6150 | VAS tester with the current version of ODIS (Windows 10) |
ADDITIONAL INFORMATION
All part and service references provided in this TSB (2071338) are subject to change and/or removal. Always check with your Parts Department and/or ETKA for the latest information and parts bulletins. Please check the Repair Manual for fasteners, bolts, nuts, and screws that require replacement during the repair.
