Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

If the control module is replaced, the test plan to replace the control module must be performed.

-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

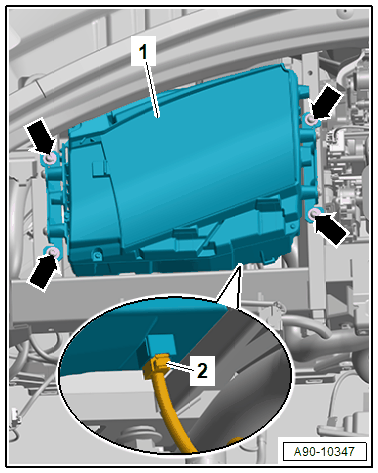

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Slightly lift out the Windshield Projection Head Up Display Control Module -J898- -1-.

-- Disconnect the connector -2-.
