Windshield Projection Head Up Display Control Module, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
-- A control module that has fallen down cannot be used again.
-- When inserting the control module, never apply pressure on the housing upper section.
Installation of a new windshield projection control module

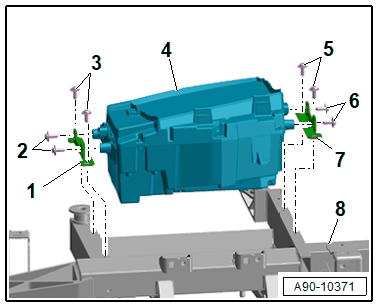

-- Position the bracket -1- and -7- on the control module -4- and tighten the bolts -2- and -6- hand-tight.
-- Insert the control module and tighten the bolts -3- and -5- to the tightening specification.
-- Tighten the bolts -2-, -6- on the bracket to the tightening specification.
Continuation
-- Check the control module function:
Conditions
- A number must be visible on the windshield.
