Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

Courtesy of AUDI

-- Remove the windshield. Refer to WINDSHIELD, REMOVING AND INSTALLING .

-- Remove the upper cover -2- from the instrument panel -1- using the Wedge Set:T10383/1 .

-- Cover the control module -3- with a soft towel.

Courtesy of AUDI

CAUTION:

There is a risk of destroying the windshield projection head up display control module.

- Only remove the designated bolts from the control module.

- Never remove the bolts for the housing upper section.

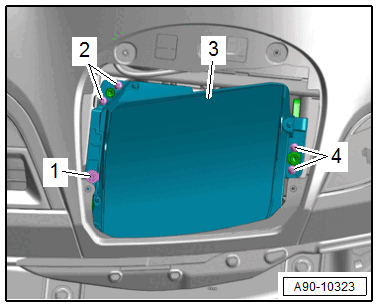

-- Remove the bolts -1, 2, 4-.

-- Lift the control module slightly and disconnect the connector.

-- Remove the control module.
