Vehicle Interior Forced Air Extraction, Checking
WARNING: This page is about a different car, the 2022 Audi e-tron Sportback, 2022 Audi e-tron S Sportback, 2021 Audi e-tron Sportback, and 2020 Audi e-tron Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- The vent opening -B- may not be sealed or covered; otherwise, it may cause problems in the vehicle interior ventilation.

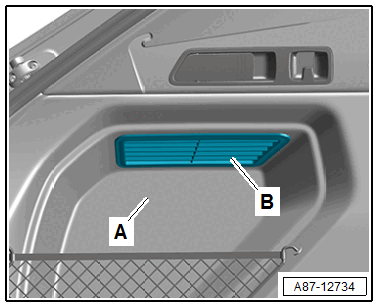

-- Unclip the luggage compartment side trim panel cover and check the vent opening -B- for flow.
-- If necessary, remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

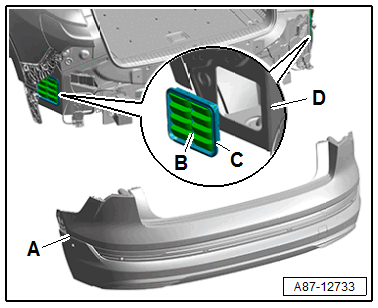

-- Check the left and right vent frame -B- for flow.
- The sealing lips in the ventilation frame must be free to move and close.
- The vent frame must be installed on the correct side.
- The vent frame must not be covered.
