Thermal Management Control Module -J1024-, EMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi e-tron Sportback, 2022 Audi e-tron S Sportback, 2021 Audi e-tron Sportback, and 2020 Audi e-tron Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition.

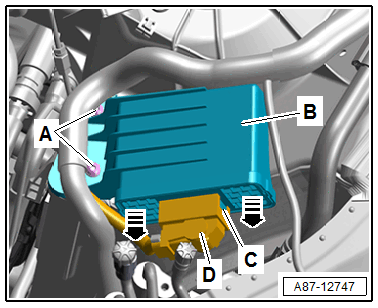

-- Release and disconnect the connector -D-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -A- and remove the Thermal Management Control Module -J1024- -C- with the bracket.

-- Loosen the catch -arrows- and remove the Thermal Management Control Module -J1024- -C- from the bracket -B-.
