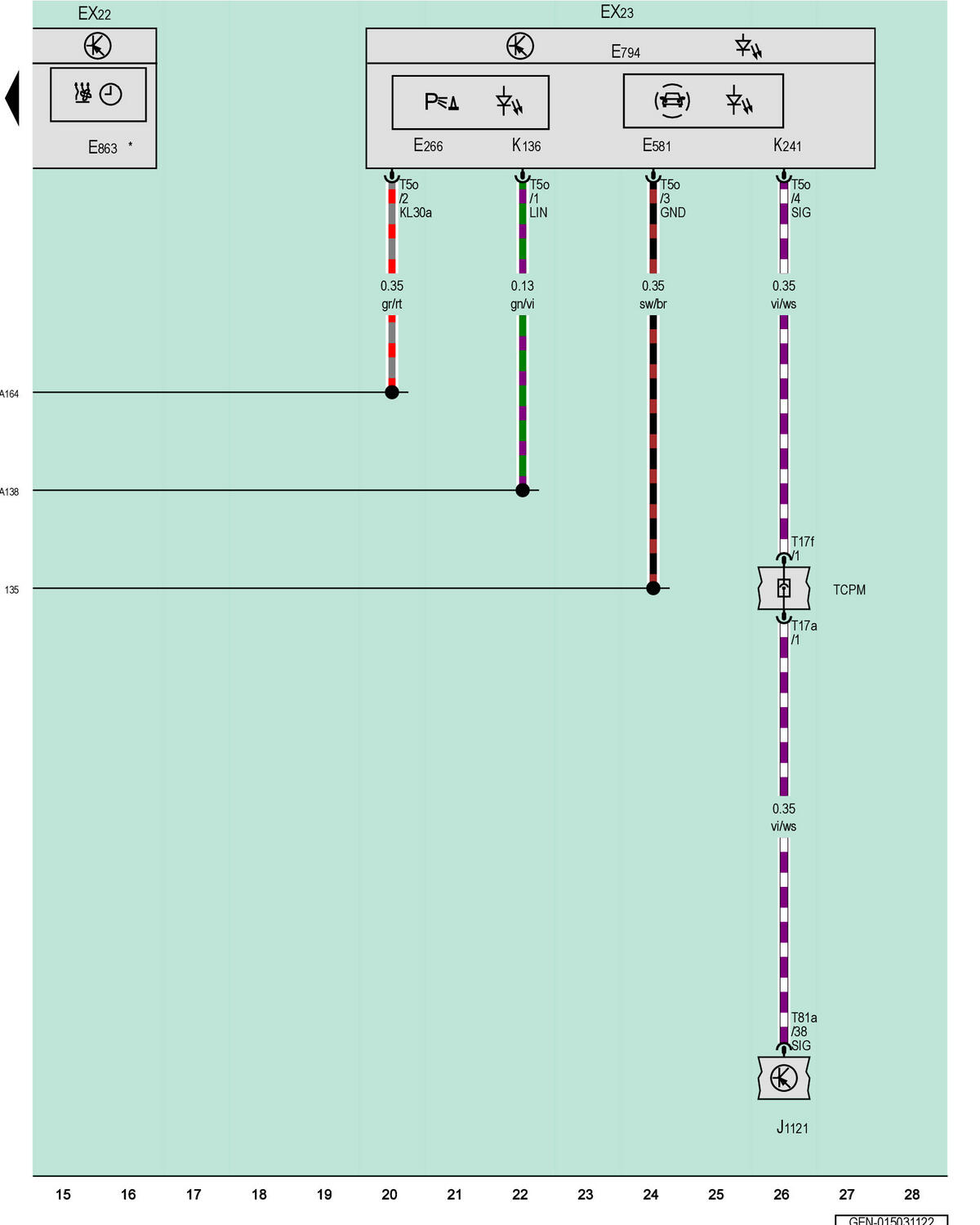

Center Instrument Panel Switch Module, Center Console Switch Module 1, Driver Assistance Systems Control Module
EX22
Center Instrument Panel Switch Module
EX23
Center Console Switch Module 1
E266
Parking Aid Button
E581
Parallel Parking Assistance Button
E794
Control Unit 2 for Driving and Convenience Functions
E863
Auxiliary Coolant Heater Button
J1121
Driver Assistance Systems Control Module
K136
Parking Aid Indicator Lamp
K241
Parallel Parking Assistance Indicator Lamp
T5o
5-Pin Connector, Black
T17a
17-Pin Connector, Red
T17f
17-Pin Connector, Red
T81a
81-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
A138
Connection 2 (in Instrument Panel Wiring Harness)
A164
Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
*
Depending on Equipment
