Antenna Amplifiers -R24- / -R111- / -R83- / -R84-, Removing And Installing, E-Tron SPORTBACK: Notes

WARNING: This page is about a different car, the 2022 Audi e-tron S and 2022 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

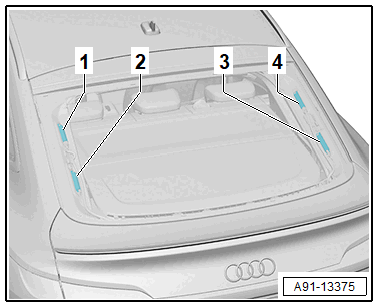

The antenna amplifier is located on the right and left side of the rear lid.

Courtesy of AUDI OF AMERICA, LLC

-1- Antenna Amplifier 2 -R111-
-2- TV Antenna Amplifier 3 -R84-
-3- TV Antenna Amplifier 2 -R83-
-4- Antenna Amplifier -R24-

Removing and installing is identical.
