Rear Transmission Code 0MC

WARNING: This page is about a different car, the 2022 Audi e-tron S and 2022 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The transmission 0MC is only installed on the rear drive motor for the e-tron S.
Here a transmission is installed with the right drive motor and a transmission with the left drive motor respectively.

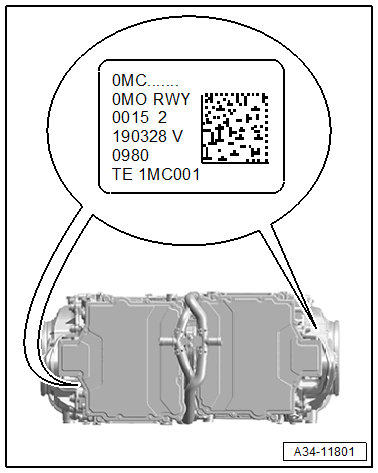

Layout on Transmission 0MC

Courtesy of AUDI OF AMERICA, LLC

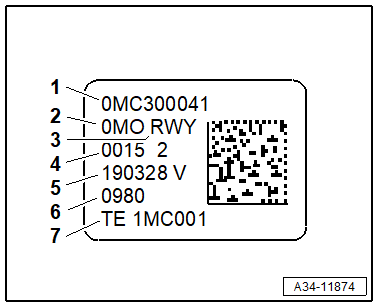

Layout to Transmission 0MC

Courtesy of AUDI OF AMERICA, LLC

Part number. Refer to Parts Information.
Assembly Group Number
Transmission Code
Transmission Serial Number
Production Date (Year Month Day)
Dimension for shim ¹⁾
Ignore

¹⁾ Example: 0980 = 9.80 mm
