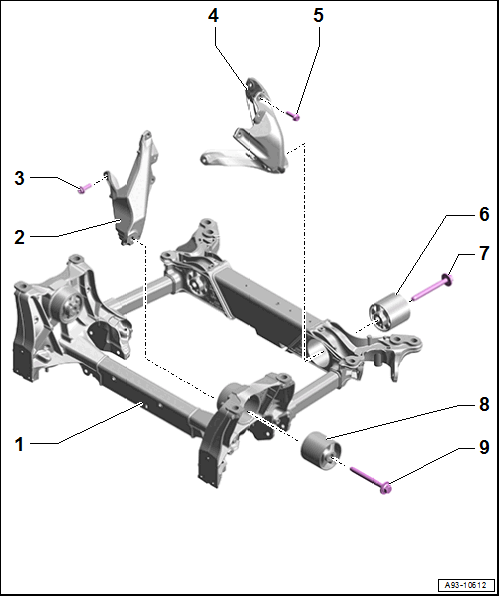

Overview - Front Assembly Mounts

Courtesy of AUDI OF AMERICA, LLC

Subframe
- Refer to OVERVIEW - SUBFRAME .
Front Motor Support
- There are different versions.
- Refer to FRONT MOTOR SUPPORT FOR FRONT MOTOR, REMOVING AND INSTALLING
Bolt
- Quantity: 4 each motor support
- Replace after removing
- 50 Nm +90°
Rear Motor Support
- There are different versions.
- Refer to REAR MOTOR SUPPORT FOR FRONT MOTOR, REMOVING AND INSTALLING
Bolt
- Quantity: 4 each motor support
- Replace after removing
- 50 Nm +90°
Rear Motor Mount
- Refer to REAR MOTOR MOUNT FOR FRONT MOTOR, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 160 Nm
Front Motor Mount
- Refer to FRONT MOTOR MOUNT FOR FRONT MOTOR, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 160 Nm
