Overview - Night Vision System Camera

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

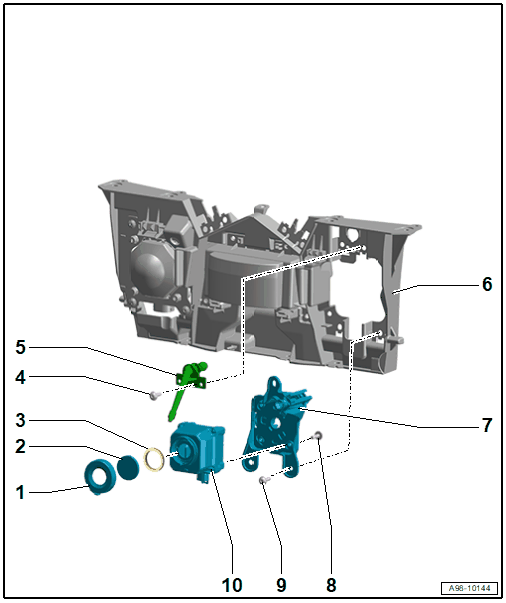

Fig 1: Exploded View Of Night Vision System Camera

Courtesy of AUDI OF AMERICA, LLC

Cap
Protective Window
- Refer to Night Vision System CameraR212 Protective Window, Removing and Installing .
Seal
- Replace after removing
Bolt
- Tightening specification and tightening sequence. Refer to Fig 3.
Night Vision System Camera -R212- Washer Nozzle
Assistance Systems Mount
- Refer to OVERVIEW - IMPACT MEMBER .
Bolt
- Tightening specification and tightening sequence. Refer to Fig 2.
- Quantity: 4
Retaining Plate
- With adjusting screw
Bolt
- Tightening specification and tightening sequence. Refer to Fig 3.
- Quantity: 3
Night Vision System Camera -R212-
- Refer to Night Vision System CameraR212, Removing and Installing .
- Refer to INFRARED SYSTEM, CALIBRATING .

Tightening Specification and Tightening Sequence, Night Vision System Camera R212 to the Retaining Plate

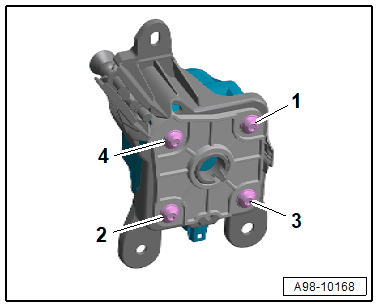

Fig 2: Night Vision System Camera -R212- To The Retaining Plate Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Tightening Sequence	Tightening Specification
Bolts 1 to 4	6 Nm

Tightening Specification and Tightening Sequence, Retaining Plate and Washer Nozzle to the Assistance Systems Mount

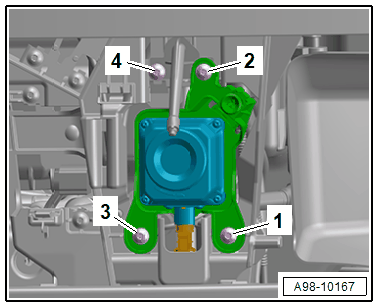

Fig 3: Retaining Plate And Washer Nozzle To The Assistance Systems Mount Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Tightening sequence	Tightening Specification
Bolts 1 to 4	4 Nm
