Wireless Data Transfer Antenna 2 -R366- REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

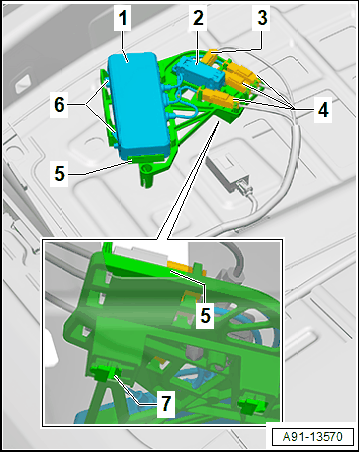

-- Pry off the Wireless Data Transfer Antenna 2 -R366- -2- from the mirror base
-- Disconnect the connector -3-.
Remove the antenna module bracket
-- Unclip the connectors -4-.
-- Release the retaining tabs -6-.
-- Pivot out the Telephone Antenna Module, Telematics -RX23- -1- with the antenna wires still connected and move to the side.
-- Release the retaining tab -7-.
-- Remove the bracket -5-.
