USB Connection 1 -U41-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bench seat / single seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Disconnect the connectors -2-.

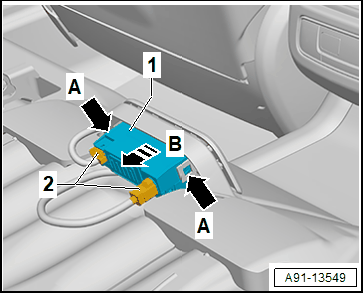

GWWA91-13549Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -arrows A-, at the same time remove the USB Connection 1 -U41- -1- in direction of -arrow B-.
