Telephone/Telematics Control Module -J526-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

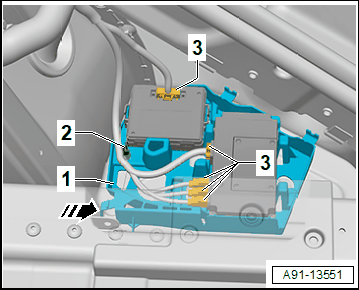

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Disconnect the connectors -3-.
-- Unclip the bracket -2-.
-- Release the retaining tab in direction of -arrow-, at the same time remove the bracket -1- with the control modules.
Tip
The bracket -1- is also secured to the body with adhesive tapes.

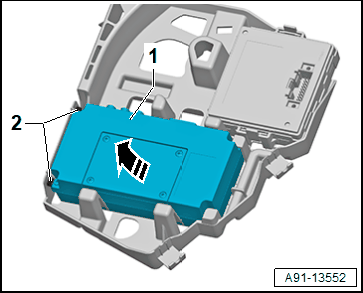

-- Release the retaining tabs -2-.
-- Pivot out the Telephone/Telematics Control Module -J526- -1- in direction of -arrow-.
