Telephone BASEPLATE, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.
If the control module is replaced, the test plan to replace the control module must be performed.
-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to DIAGNOSTIC ENTRY .
-- Remove the storage compartment cover. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

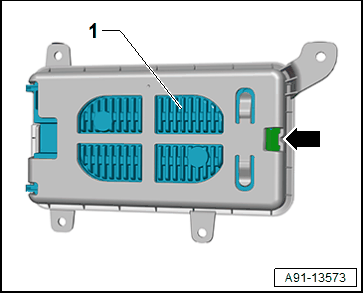

-- Release the retainer -2- and remove the Mobile Device Charger 1 -J1146- -1-.
