Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Removing

If the control module is replaced, the test plan to replace the control module must be performed.

-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to DIAGNOSTIC ENTRY .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the left and right air ducts to the center console. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

-- Disconnect the connectors from the Information Electronics Control Module 1 -J794- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9  -1- into the MOST bus connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the bracket -4- and pivot the wiring harness to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the two clips of the Radio Removal Tool: T10057  into the slits -arrows-.

Conditions

• Tips on the grip eyelets of the removal tool face outward.
• The clips of the removal tool must engage.

-- Remove the control module -1- at the grip eyelets of the removal tool.

-- Press the locking tabs on the control module to remove the removal tool.

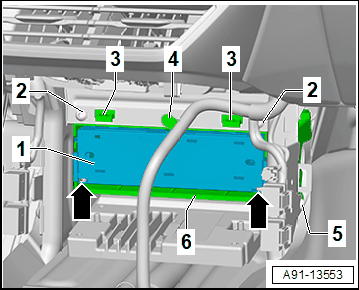

Remove the control module bracket

-- Remove the left and right bolts -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Disengage the retaining straps -3- and remove the bracket -6-.
