Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

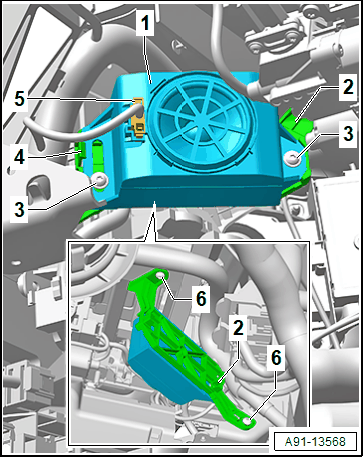

-- Remove the driver side knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

-- Disconnect the connector -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3-.

-- Release the retaining tab -4-.

-- Remove the Emergency Call Module Speaker -R335- -1-.

Remove the speaker bracket

-- Remove the screws -6-.

-- Remove the bracket -2-.
