Emergency Call Module Antenna 3 -R323-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

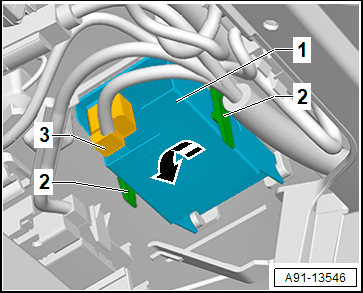

-- Remove the cover beside the roof module. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .
-- Disconnect the connector -3-.
-- Release the retaining tabs -2-.
-- Pivot out the Emergency Call Module Antenna 3 -R323- -1- in direction of -arrow-.
