Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

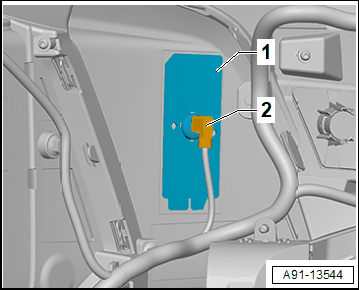

GWWA91-13544Courtesy of AUDI OF AMERICA, LLC

-- Pry the Emergency Call Module Antenna -R263- -1- out of the bumper cover.
