Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.
If the control module is replaced, the test plan to replace the control module must be performed.
-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to DIAGNOSTIC ENTRY .
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

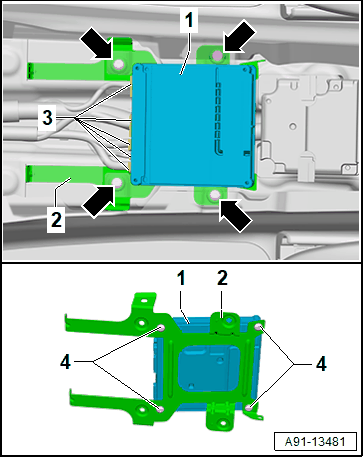

-- Disconnect the connectors -3-.
-- Remove the bolts -arrows-.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- with the bracket -2-.
-- Remove the bolts -4-.
-- Remove the control module -1-.
