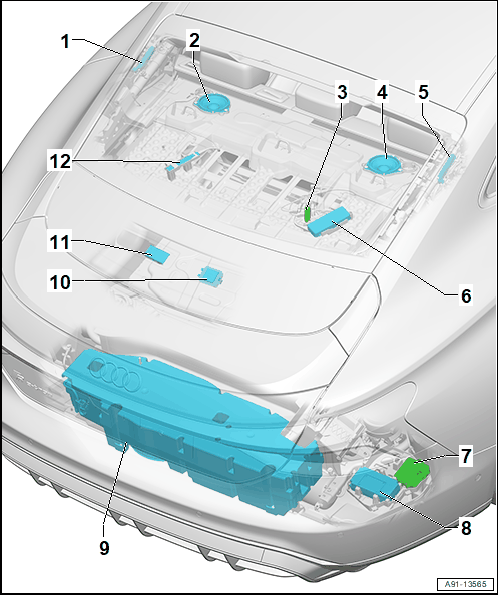

Component Location Overview - Components/Control Modules In Rear Section Of Vehicle

WARNING: This page is about a different car, the 2022 Audi e-tron GT and 2022 Audi RS e-tron GT. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Antenna Amplifier 2 -R111-
- With Digital Radio Antenna -R183-
- Refer to Antenna Amplifier 2R111, Removing and Installing .
Left Effects Speaker -R209-
- Refer to Left Effects Speaker -R209- /Right Effects Speaker -R210-, REMOVING AND INSTALLING, PREMIUM SOUND .
Wireless Data Transmission Antenna 2 -R366-
- Refer to Wireless Data Transfer Antenna 2R366, Removing and Installing or Wireless Data Transfer Antenna 2R366, Removing and Installing .
Right Effects Speaker -R210-
- Refer to Left Effects Speaker -R209- /Right Effects Speaker -R210-, REMOVING AND INSTALLING, PREMIUM SOUND .
Antenna Amplifier -R24-
- Refer to Antenna AmplifierR24, Removing and Installing .
Telephone Antenna Module, Telematics -RX23-
- Refer to Radio Data Transmission Antennas, Removing and Installing .
Telematics Interface Control Module -J1221-
- Refer to Telematics Interface Control ModuleJ1221, Removing and Installing .
Telephone/Telematics Control Module -J526-
- Refer to Telephone/Telematics Control ModuleJ526, Removing and Installing .
Subwoofer -R211-
- Refer to SubwooferR211, Removing and Installing .
Satellite Tuner Antenna -R172-
- Refer to Satellite Tuner AntennaR172, Removing and Installing .
Emergency Call Module Antenna 4 -R380-
- Refer to Emergency Call Module Antenna 4R380, Removing and Installing .
Emergency Call Module Antenna 2 -R322-
- Refer to Emergency Call Module Antenna 2R322, Removing and Installing .
