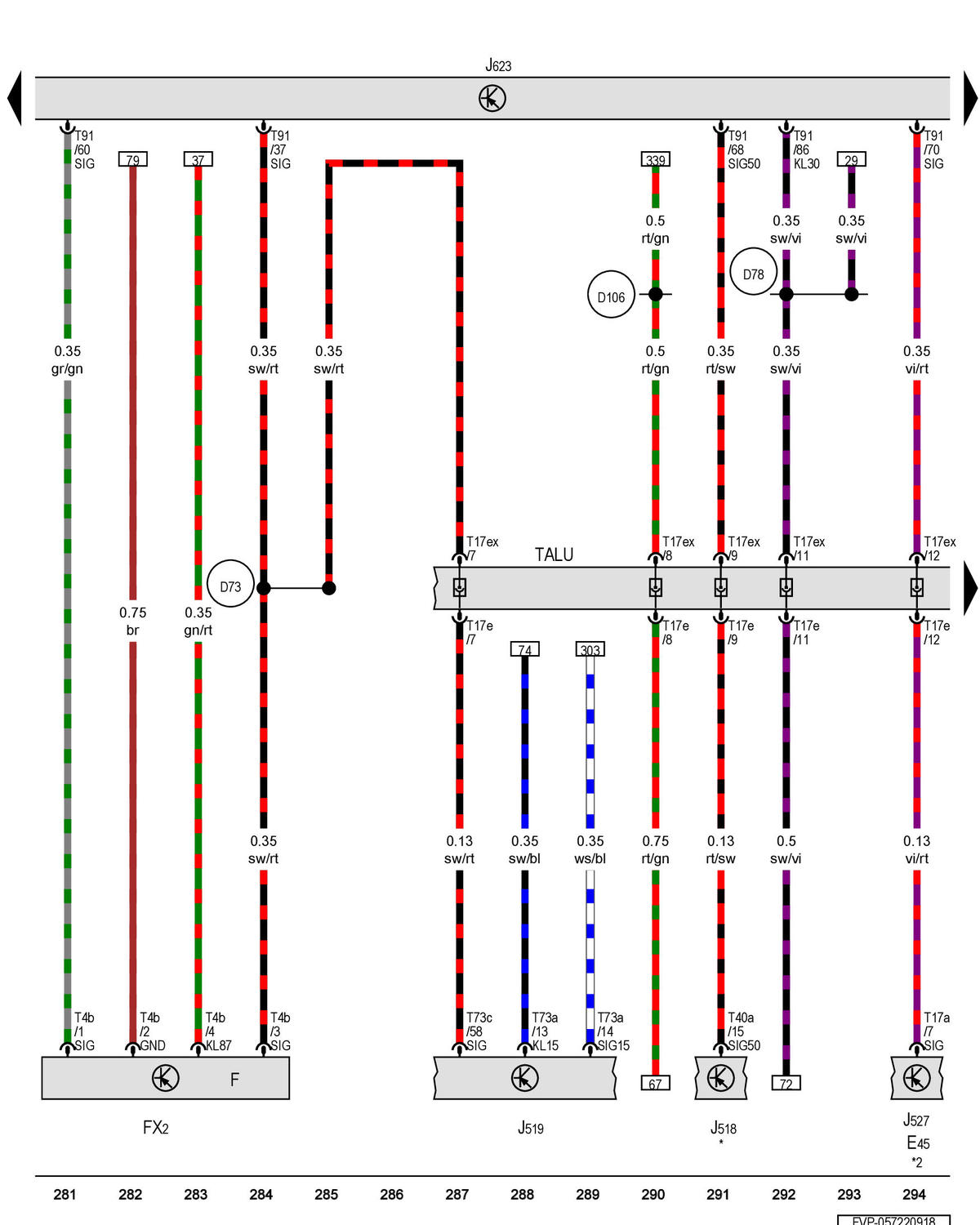

Brake Pedal Switch, Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module: Notes

GWWFVP-057220918Courtesy of AUDI OF AMERICA, LLC
